Product Details
＋

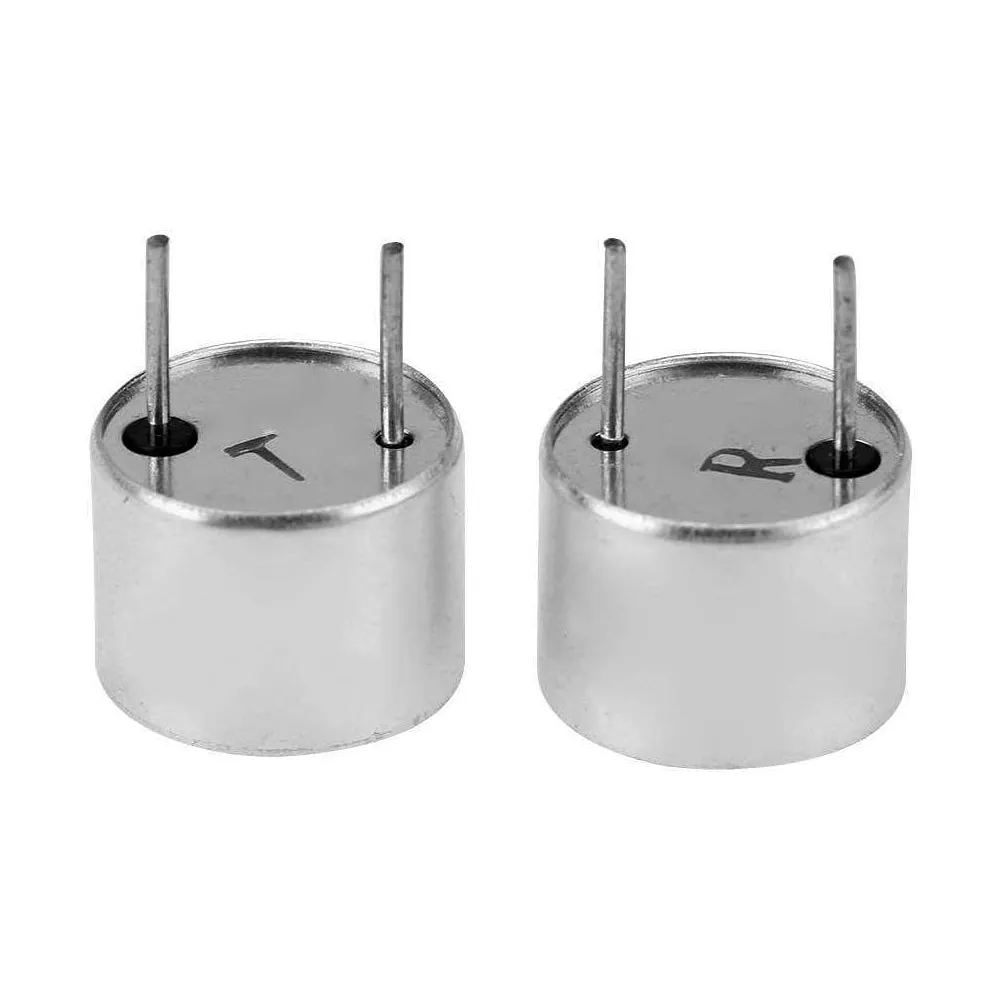

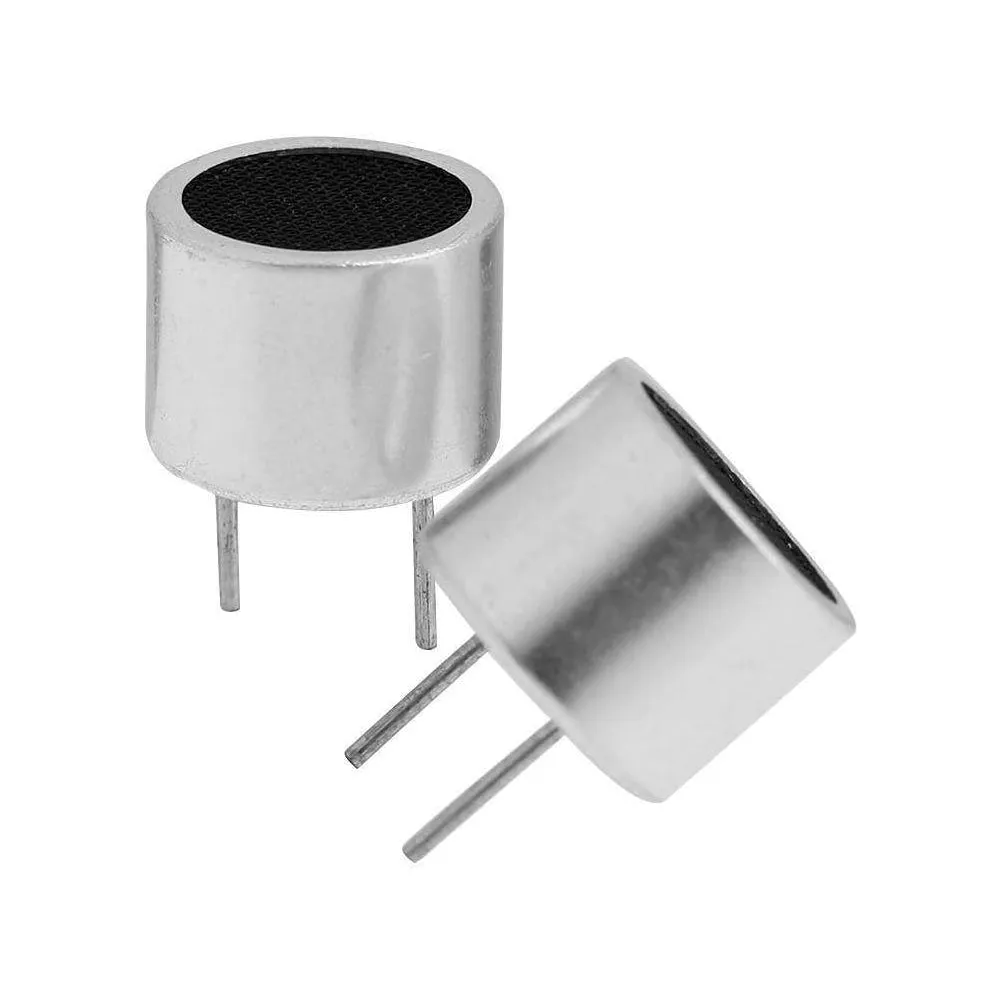

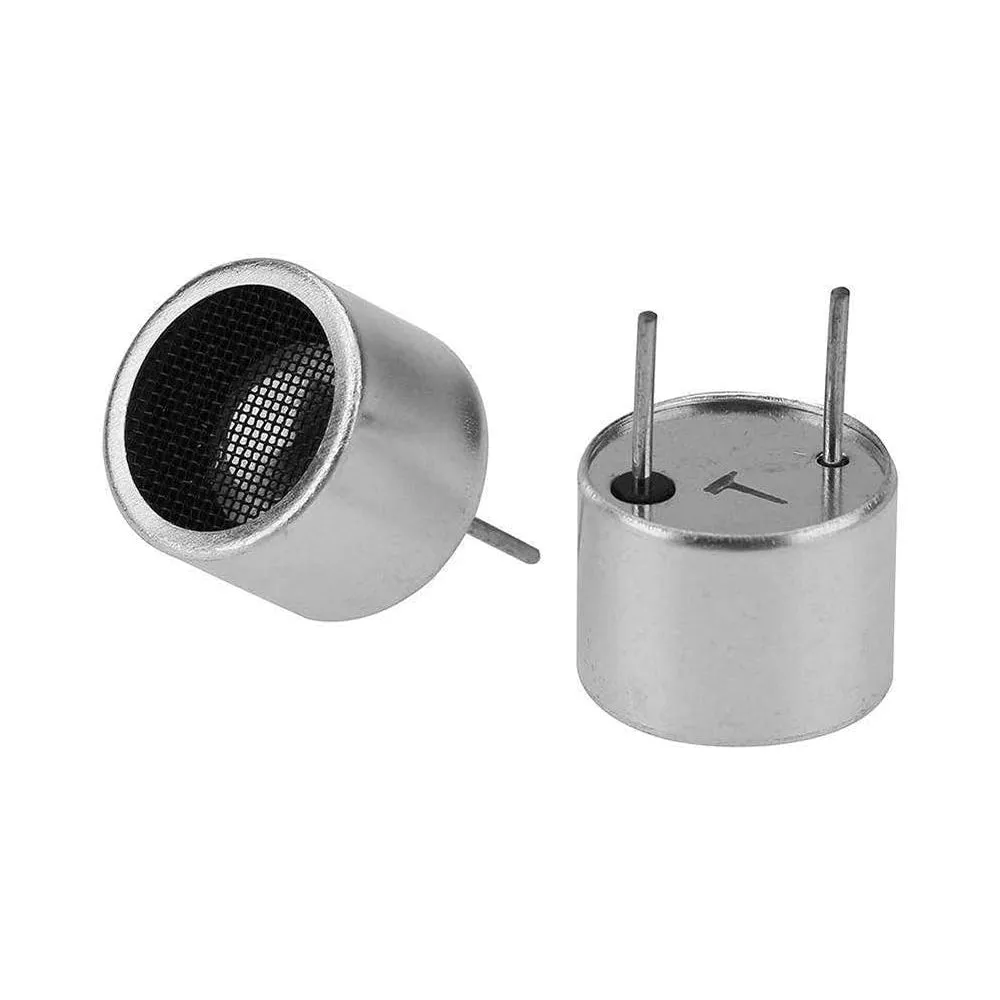

The 1 Pair 16mm Split Transceiver High Sensitivity Ultrasonic Sensor is a high-performance sensor designed for applications requiring accurate distance measurement and object detection. These sensors are widely used in various fields, including robotics, automotive, industrial automation, and security systems.
Compact Design: The 16mm diameter allows for integration into small spaces.
Robust Performance: Reliable operation in diverse conditions, including variations in temperature and humidity.
Split Transceiver: Separate transmitter and receiver units enhance flexibility in mounting and application.
Automotive: Employed in parking sensors, collision avoidance systems, and blind-spot detection.
Features:
High Sensitivity: Capable of detecting small and distant objects with high precision.Compact Design: The 16mm diameter allows for integration into small spaces.
Robust Performance: Reliable operation in diverse conditions, including variations in temperature and humidity.
Split Transceiver: Separate transmitter and receiver units enhance flexibility in mounting and application.
Applications:
Robotics: Used in autonomous navigation, obstacle detection, and distance measurement.Automotive: Employed in parking sensors, collision avoidance systems, and blind-spot detection.
Technical Details
- Maximum Input Voltage: 80V
- Sensitivity: Min. -65dB
- Nominal Frequency: 40kHz±1kHz
- Usage Method: Transmitter/receiver
- SPL: 114dB
- Orientation: 80°C
- Static Capacitance: 2200pF
- Detectable Range: 0.2~18m
- Operating Temperature: -20~ 70℃
- Outer Body: Aluminum
Application
- Object Detection
- Robot Control
- Distance Measurement
- Status Detection
Physical Attributes
- Weight: 2.31g
- Diameter: 16mm
Package Includes
- 1 x 1 Pair 16mm Split Transceiver High Sensitivity Ultrasonic Sensor
