Product Details
＋

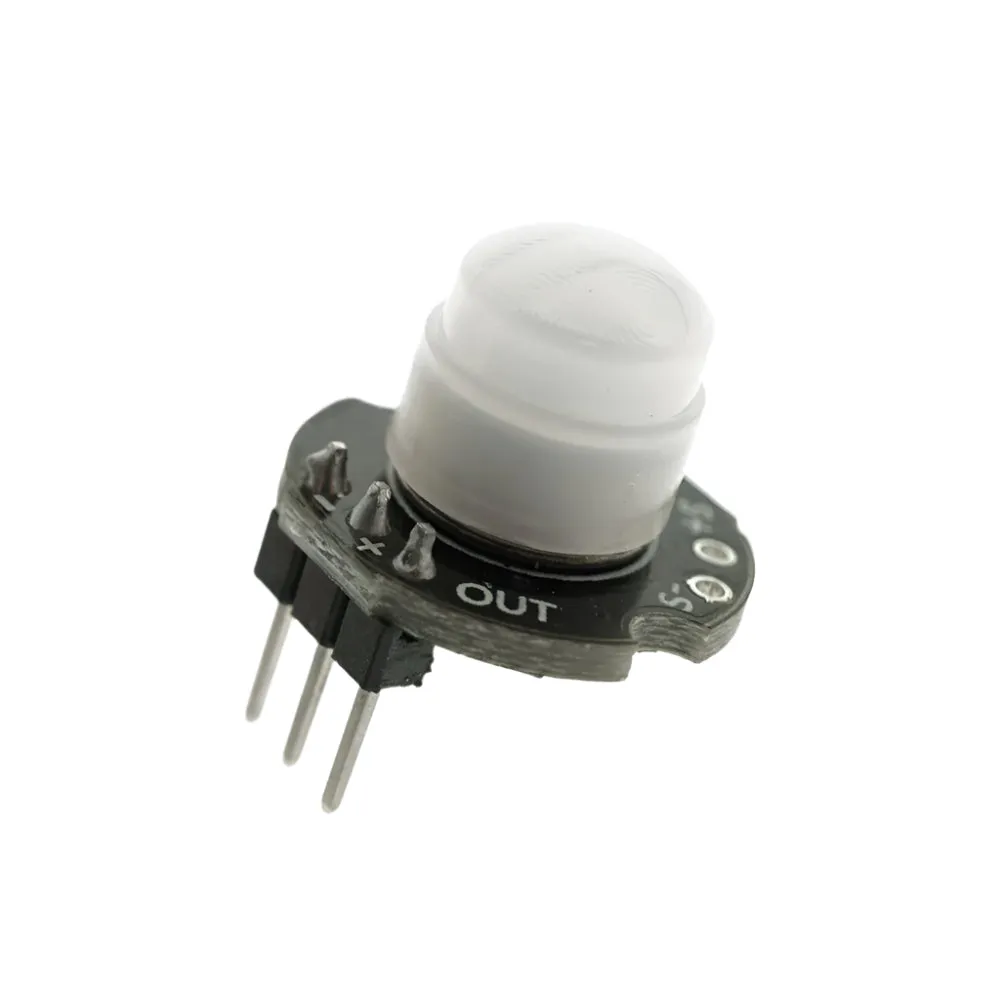

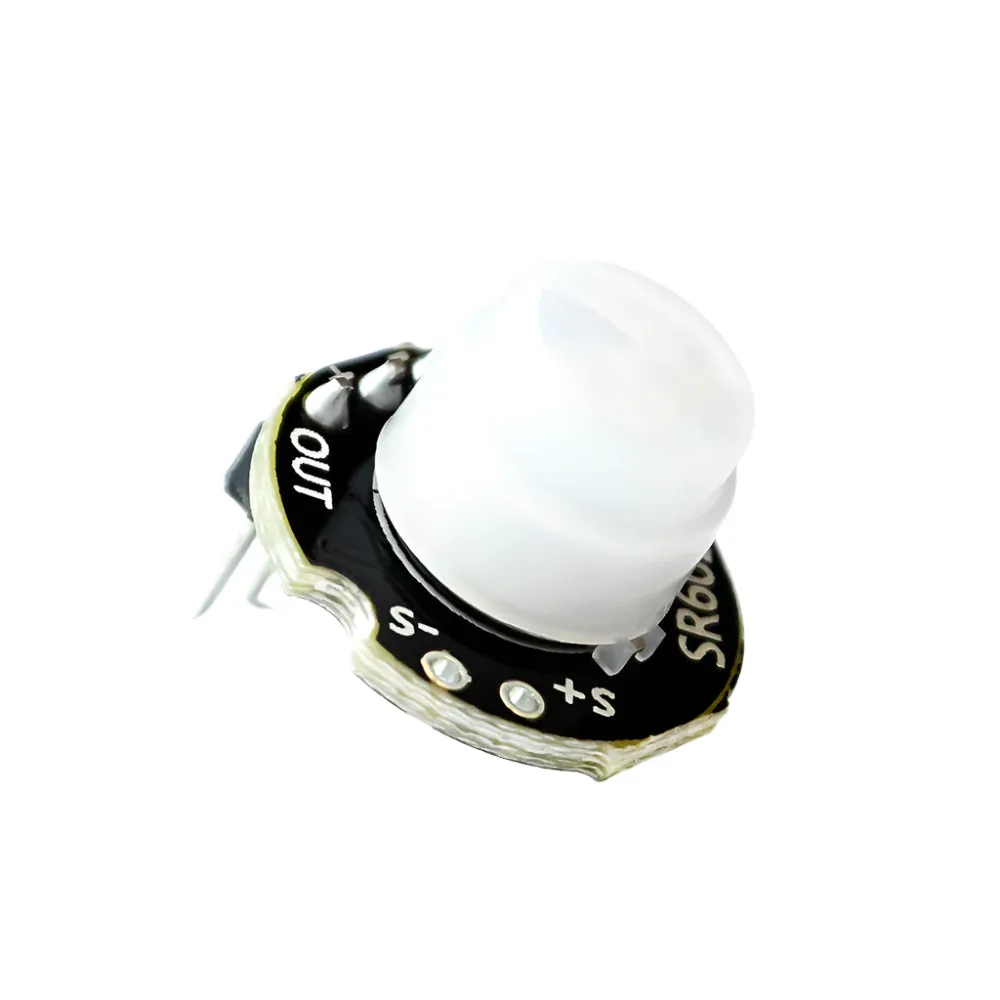

AM312 is a PIR module like SR501 intelligent infrared technology, automatic control products.
High sensitivity, high reliability. Widely used in various auto-sensing electrical equipment.
Technical Details
- Working voltage: DC 2.7-12V
- Static power consumption: <0.1mA
- Delay time: 2 seconds
- The blocking time: 2 seconds
- Trigger: can be repeated
- Sensing range: ≤100 degree cone angle, 3-5 m
- Working temperature: -20 – 60 degree
- Output voltage: 3.3V (triggered) / 0V (un-triggered)
Physical Attributes

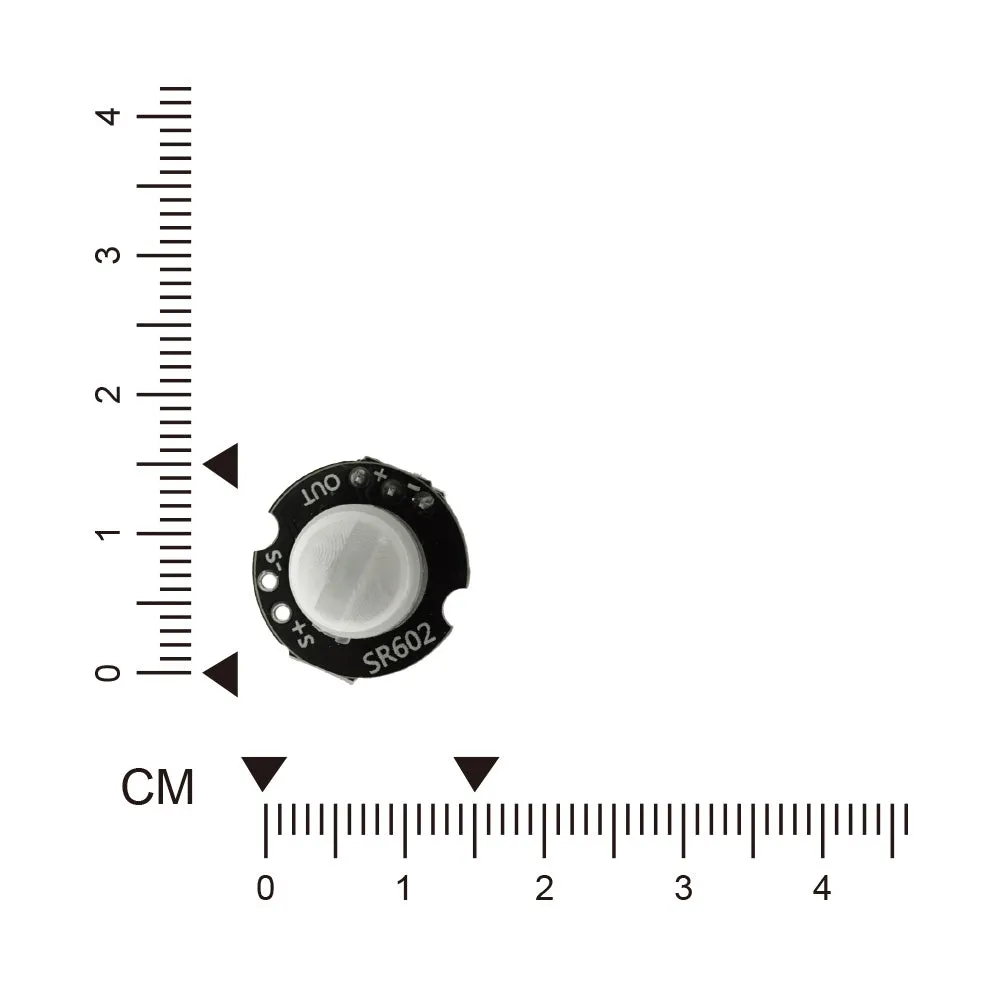

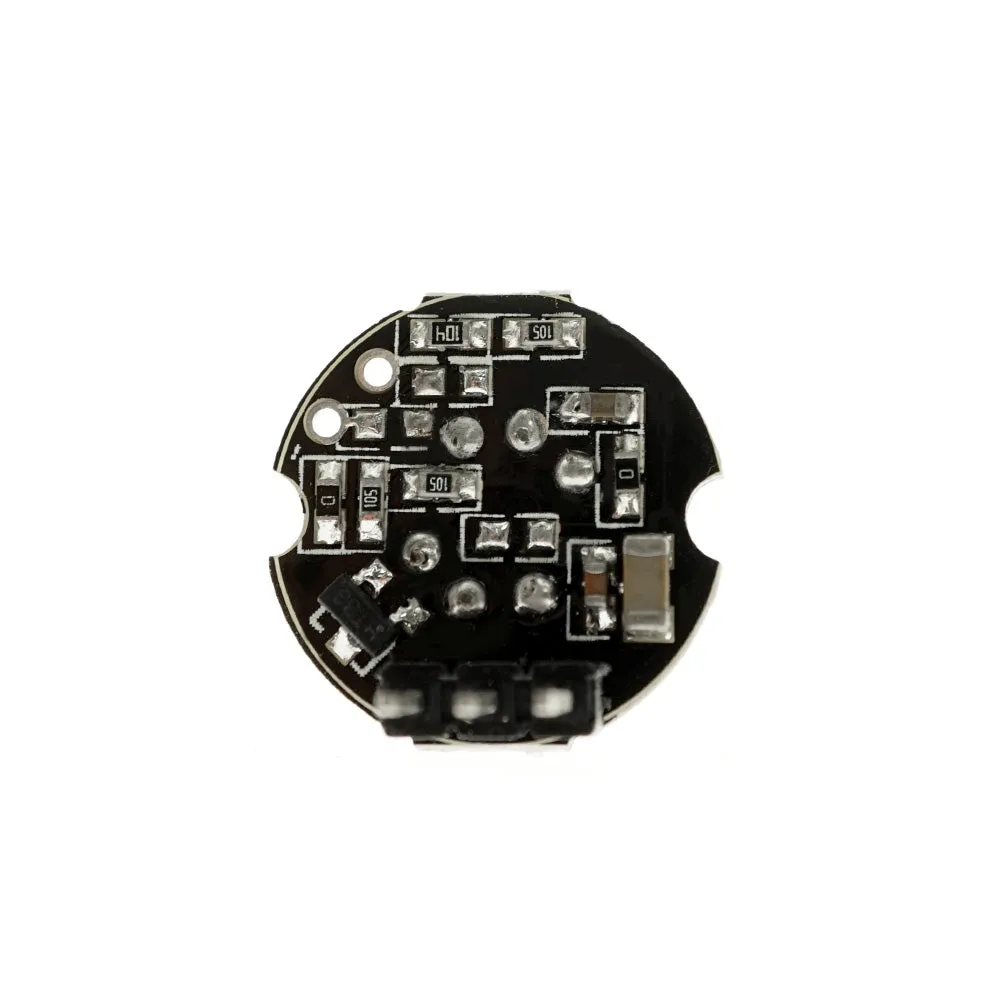

- PCB Dimensions: 10mm x 8mm
- Total size: Approx. 12mm x 25 mm
- Weight (gm) : 23
Product Video
Tutorial
Package Includes
- 1 X AM312 Mini Infrared Human Motion Sensor
