Product Description
-

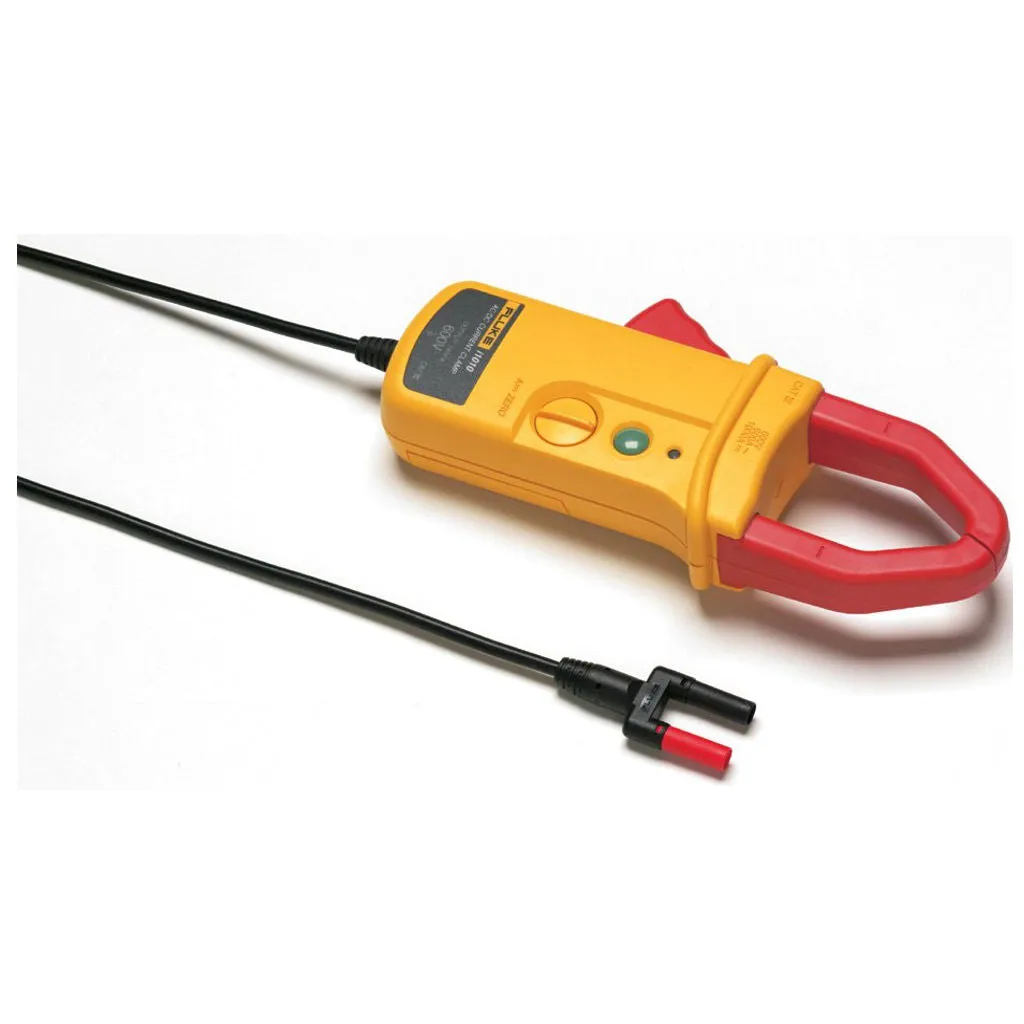

The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A
-
Provides accurate current reading without breaking the circuit
-
Compatible with most Fluke multimeters
-
CAT III 600 V safety rating
-
Fluke current clamps extend the current ranges of Fluke tools
-
The Fluke i1010 AC/DC current clamp is highly reliable, measures 1 A to 1000 A and provides accurate current reading without breaking the circuit
-
This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas
-
Compatible with most Fluke multimeters
Product Specification
|
Brand |
Fluke |
|
Product Type |
Current Clamp |
|
Model |
i1010 |
|
Measurement Type |
Hall sensor |
|
Nominal Current Range |
600
A, AC |
|
Continuous Current Range |
1
A - 600 A, AC |
|
Maximum Non-Desctructive Current |
1000 A |
|
Lowest Measureable Current |
0.5 A |
|
Basic Accuracy |
2%
0.5 A |
|
Useable Frequency |
DC - 10 kHz |
|
Output Level(S) |
1 mV/A |
|
Zero Error Adjustment |
Yes |
|
Mechanical And General Specifications |
|
|
Battery Life |
9 V, 60 h |
|
Maximum Conductor Diameter |
30
mm |
|
Output Cable Length |
1.6 m |
|
Shrouded Banana Plugs |
Yes |
|
Safety Specifications |
|
|
Safety |
CAT III, 600 V |
|
Maximum Voltage |
600 V |
|
Warranty |
1 year |
