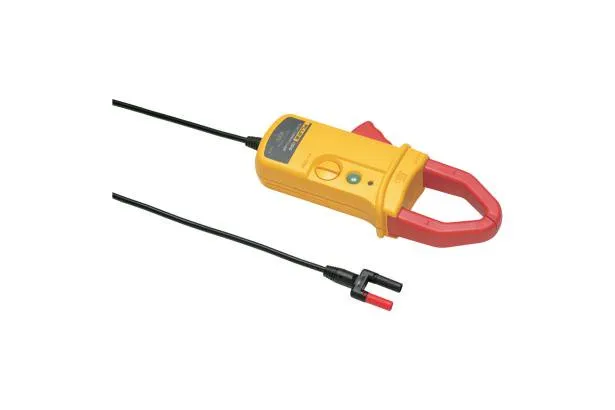

Product overview: Fluke i1010 AC/DC Current Clamp

Fluke current clamps extend the current ranges of Fluke tools. The Fluke i1010 AC/DC current clamp is highly reliable, measures 1 A to 1000 A and provides accurate current reading without breaking the circuit. This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas. Compatible with most Fluke multimeters.

Features

The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A.
Provides accurate current reading without breaking the circuit.
Compatible with most Fluke multimeters.
CAT III 600 V safety rating

Specifications: Fluke i1010 AC/DC Current Clamp

Specifications
Measurement type	Hall sensor
Nominal current range	600 A, AC 1000 A, DC
Continuous current range	1 A - 600 A, AC 1 A - 1000 A, DC
Maximum non-desctructive current	1000 A
Lowest measureable current	0.5 A
Basic accuracy	2% 0.5 A (% reading floorspec)
Useable frequency	DC - 10 kHz
Output level(s)	1 mV/A
Zero error adjustment	Yes
Safety Specifications
Safety	CAT III, 600 V
Maximum voltage	600 V
Mechanical and General Specifications
Warranty	1 year
Battery life	9 V, 60 h
Maximum conductor diameter	30 mm 2 x 25 mm
Output cable length	1.6 m
Shrouded banana plugs	Yes
