Product Details
＋

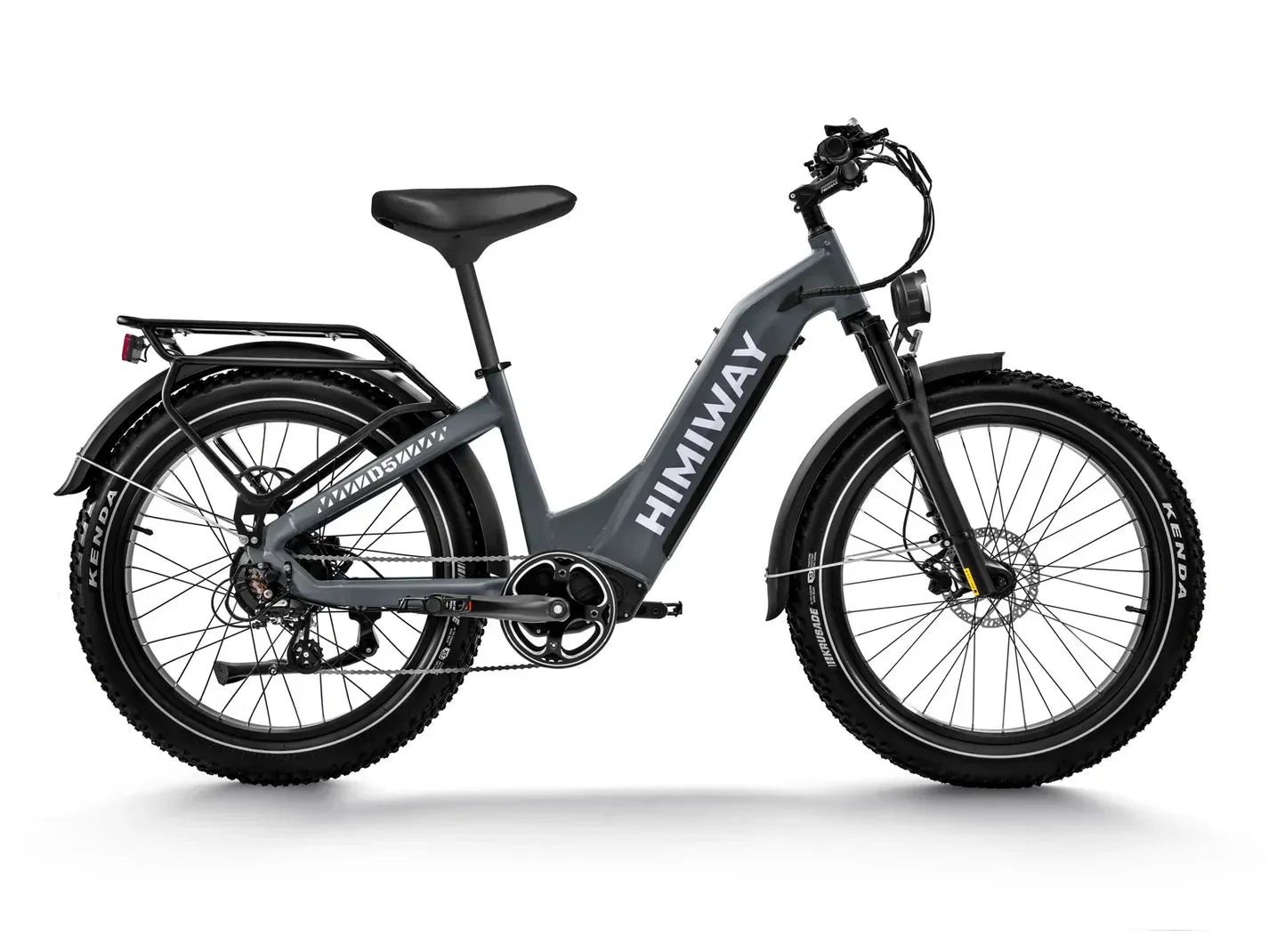

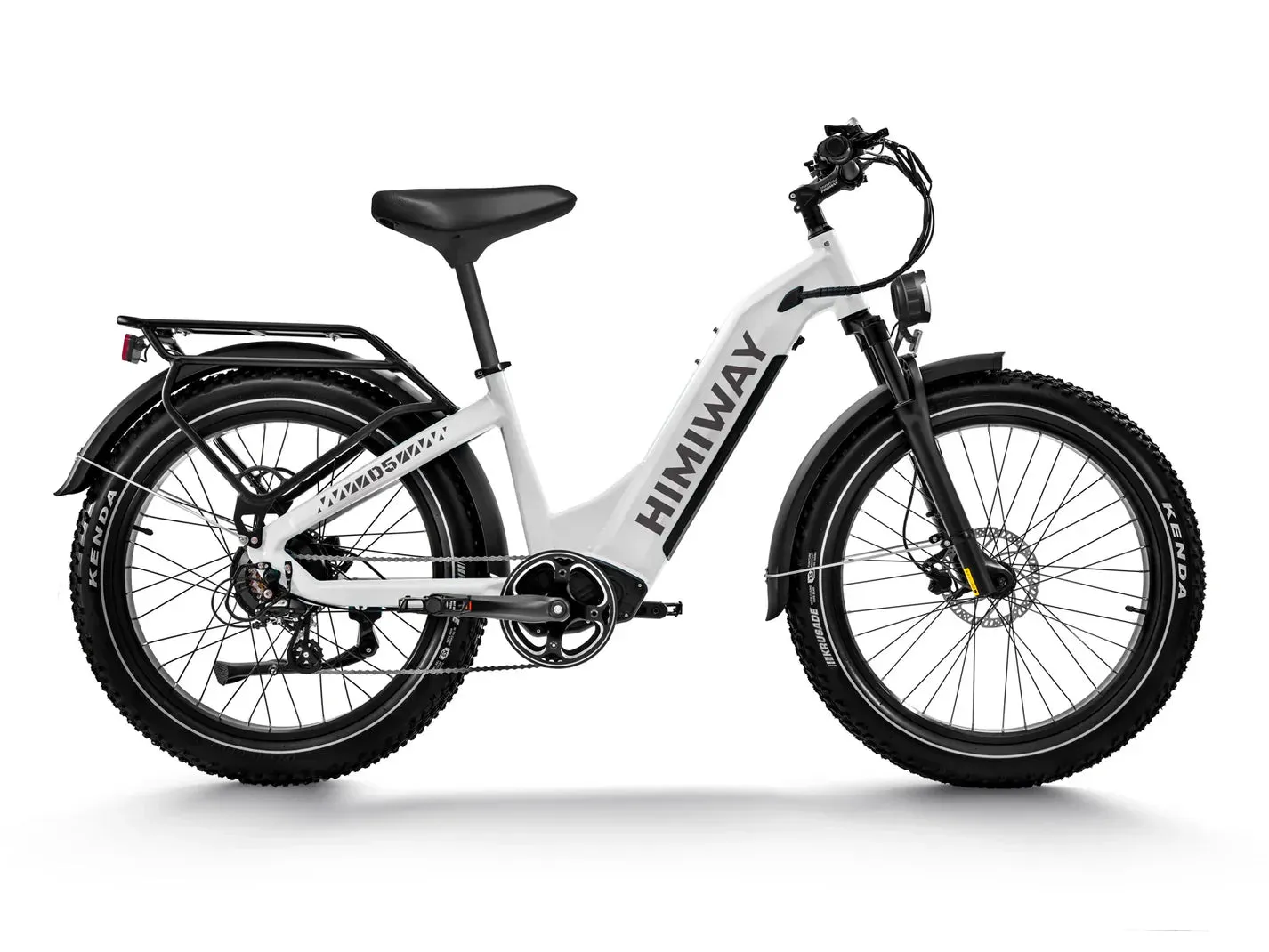

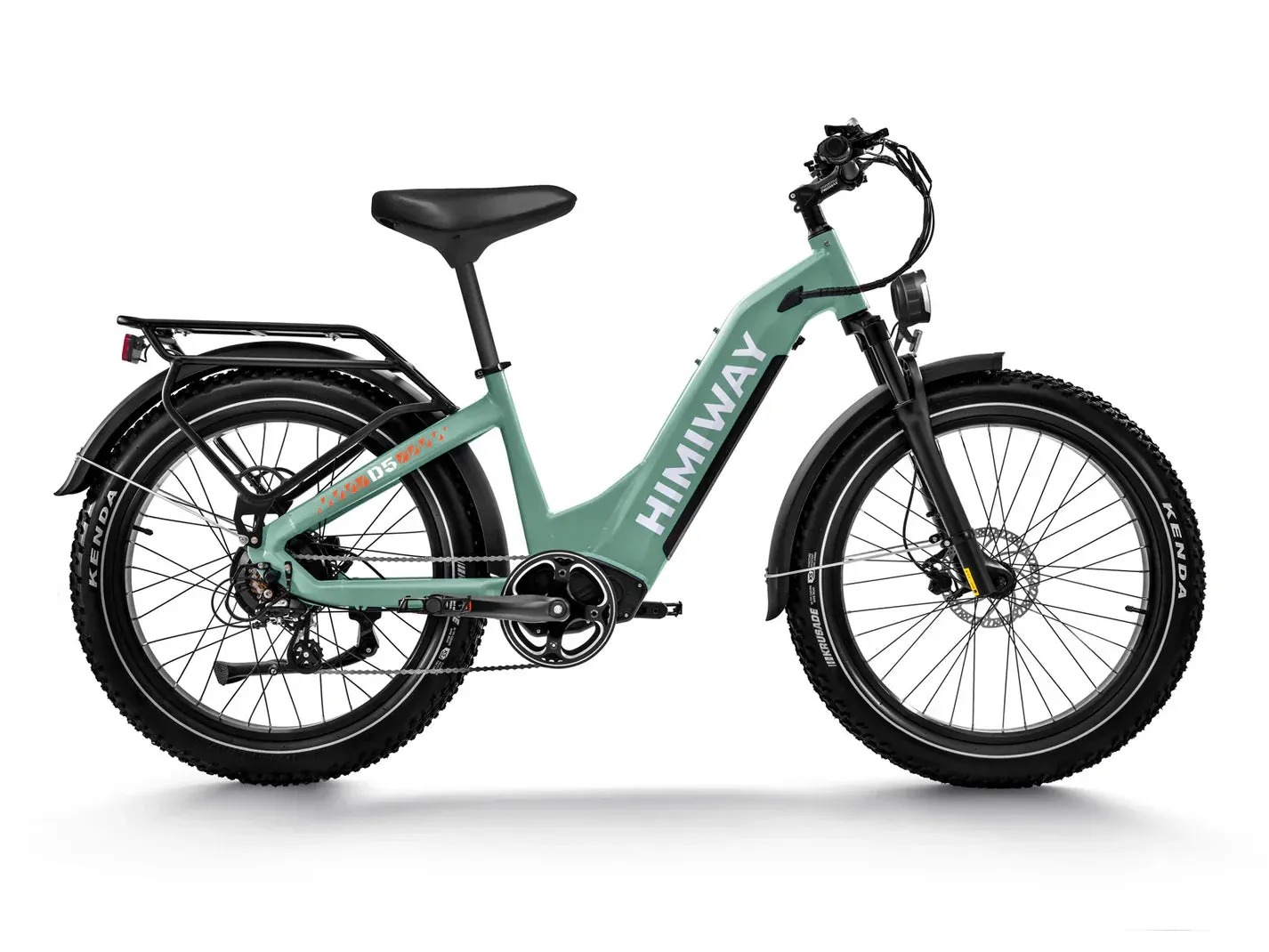

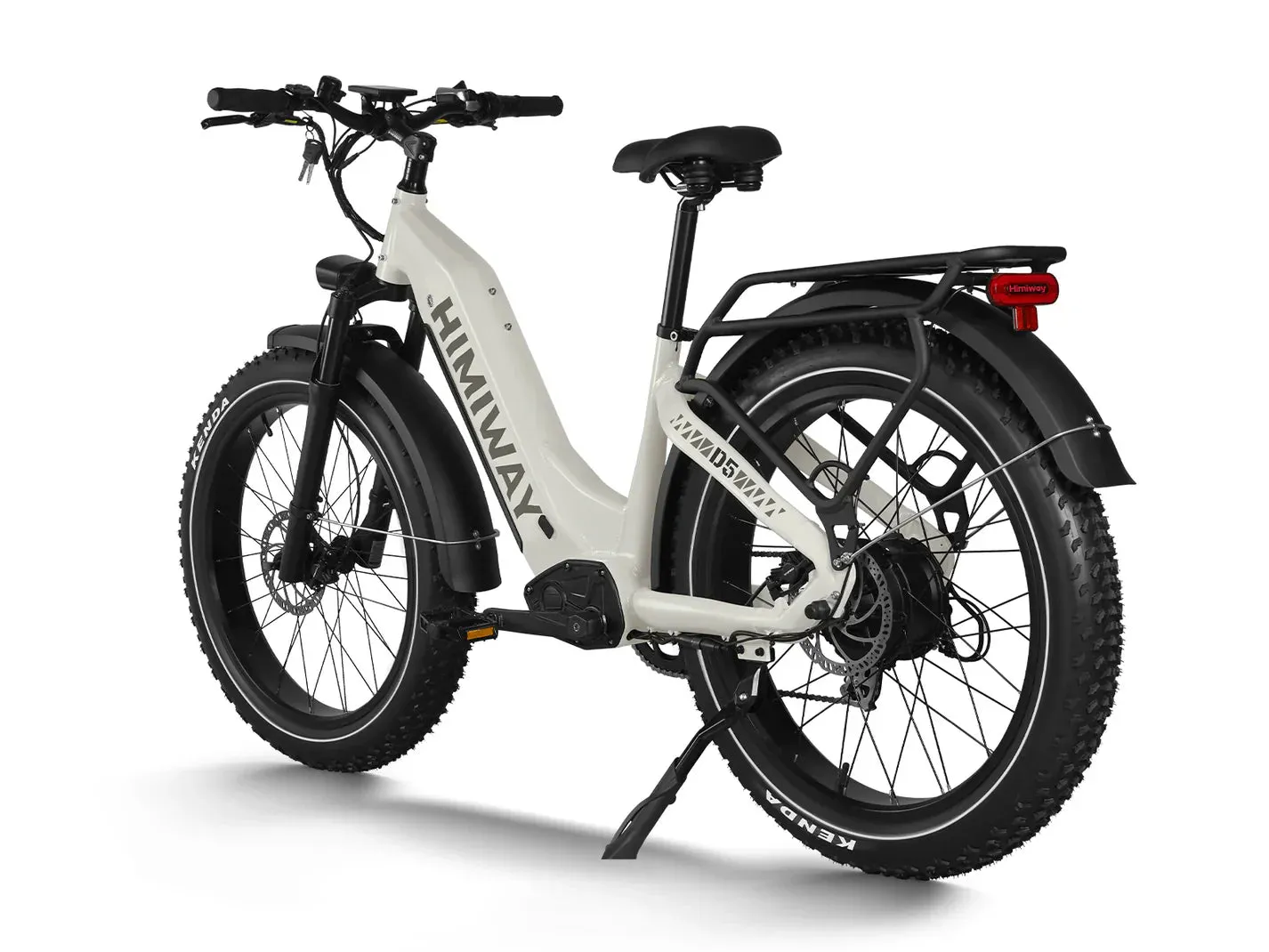

The HIMIWAY Zebra ST Step Thru eBike is a Fat electric bike with a powerful 750 w motor and a long distance 48v 20 ah battery. With 26 inch Fat tires, 7 Speed's and Hydraulic brakes this Electric Fat Tire Mountain eBike ebike is a Class 2, with a top speed up to 20 - 25 mph. An optimal distance of 60-80 miles and charge time of 4 - 6 hrs. This HIMIWAY Zebra ST Step Thru electric bike is 79lbs with a maximum cargo weight of 400lbs. The HIMIWAY Zebra ST comes in the following colors: Grey,White ,Green.
| Component | Details |
|---|---|
| Frame | 6061 Aluminum frame |
| Headset | Neco H156EM 28.644-5630 |
| Fork | TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle |
| Shock | Alloy front suspension fork with lockout and adjustment |
| Front Wheel | Rim: MD-147 26*4.0"36H12G A/V |
| Rear Wheel | Rim: MD-147 26*4.0"36H12G A/V |
| Tires | Kenda 26*4.0 |
| Battery | Samsung/LG 48V 20Ah |
| Motor | 500W mid-drive motor |
| Display | KD718-P LCD display with Type-C charger |
| Throttle | Thumb throttle |
| Sensors | Torque sensor, shifting sensor, speed sensor, brake sensor |
| Crankset | Crankarm: Prowheel 170mm / Chain ring: 44T BCD104 |
| Freewheel | Shimano CS-HG201-9 11-36T |
| Chain | KMC E9 EPT 124L |
| Groupset | Shimano Altus M2000 9 speed |
| Front Brake | Tektro HD-E350 hydraulic brake |
| Rear Brake | Tektro HD-E350 hydraulic brake |
| Rotors | Tektro TR180-52 F:180mm R:180mm |
| Stem | Zoom TDS-C269-8FOV 31.8*90mm |
| Handlebar | Promax HB-3188 22.231.8700mm |
| Seatpost | Himiway Seatpost |
| Saddle | Himiway Saddle |
| Pedal | Aluminum pedal |
| Lights | 48V LED light |
| Kickstand | Heavy-duty aluminum kickstand |
| Range | 60-80 miles |
| Controller | 48V/22A |
| Charger | US standard 3.0 A smart charger |
| Rider Height | 5'1" ~ 6'5" |
| Weight | 79 lb. (with battery) |
| Max. System Weight | 400 lb. |
