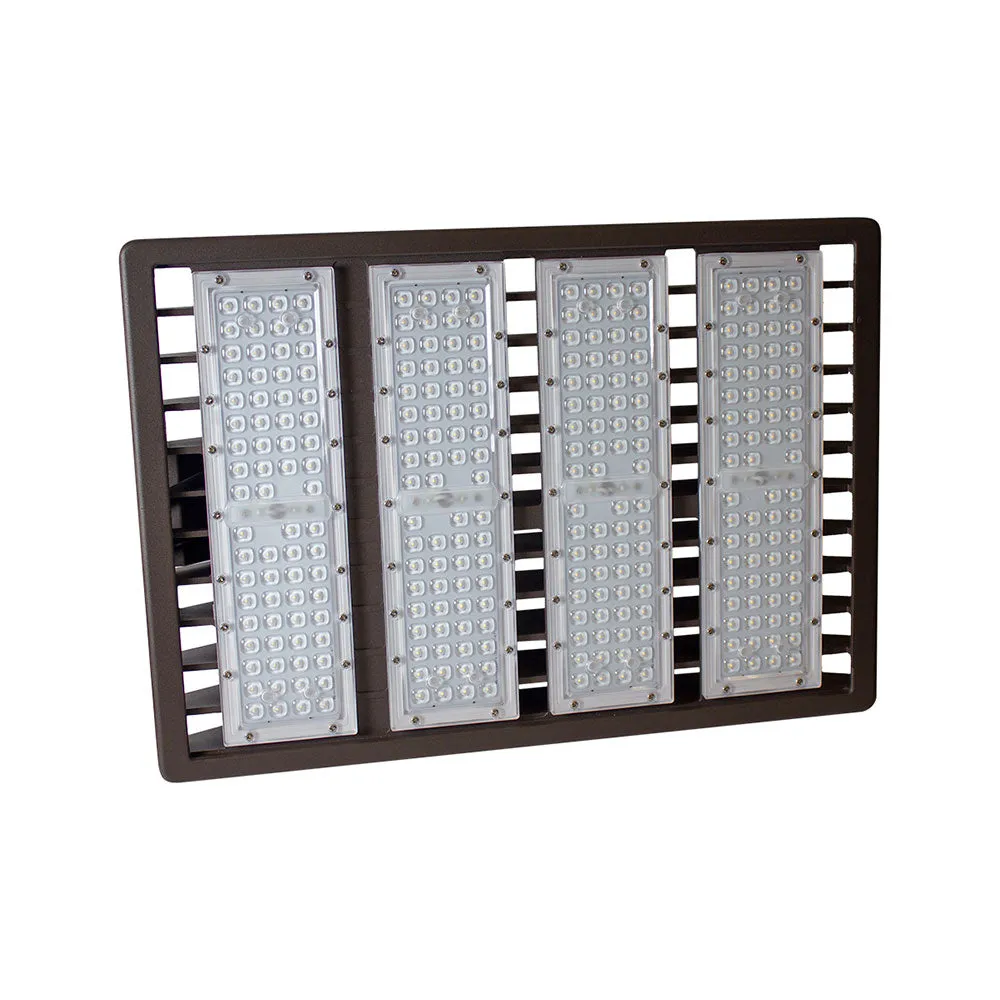

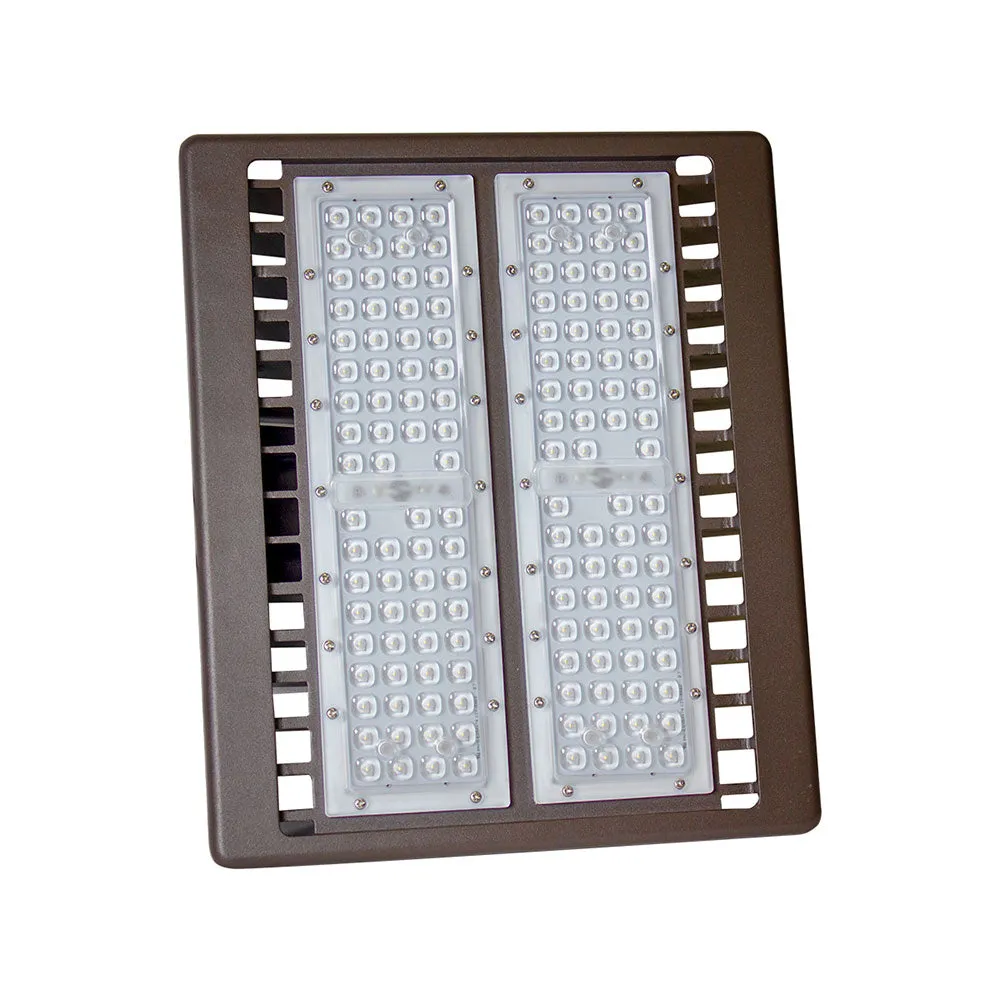

LSI Industries High Performance Flood PFL
The PFL is a high performance flood that is ideal for a wide variety of commercial applications such as parking areas, building facades, loading docks and general site lighting applications. Multiple distributions, mounting options, color temperatures and lumen packages provide flexibility to meet most specifications. The high-performance driver features over-voltage, under voltage, short-circuit and over-temperature protection and external aiming adjustability. With easy installation in new construction or retrofit applications, it has a minimum of 60,000 hours to 100,000 hours expected life. This product has a 5-year warranty.
Features & Specifications
Die cast-aluminum housing with an IP66 rating to protect internal components from harsh environmental conditions.
Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test.
Four flood distributions Narrow (3 x 3), Medium (4 x 4), Wide (6 x 6) and Very Wide (7 x 7) .
120-277 and 347-480V operation.
Slip-fitter mount provides attachment to 2 3/8" O.D. tenon). Trunnion and Yoke Mount provide secure attachment to flat surfaces.
Operating temperature: -20°C to 45°C (-4°F to 113°C).
Optional glare shields (full & half) & wire guards are available.
Max Lumens
- 42,000
Min Lumens
- 11,000
Sensors
- Photocell
Color Temperatures
- 4000
- 5000
