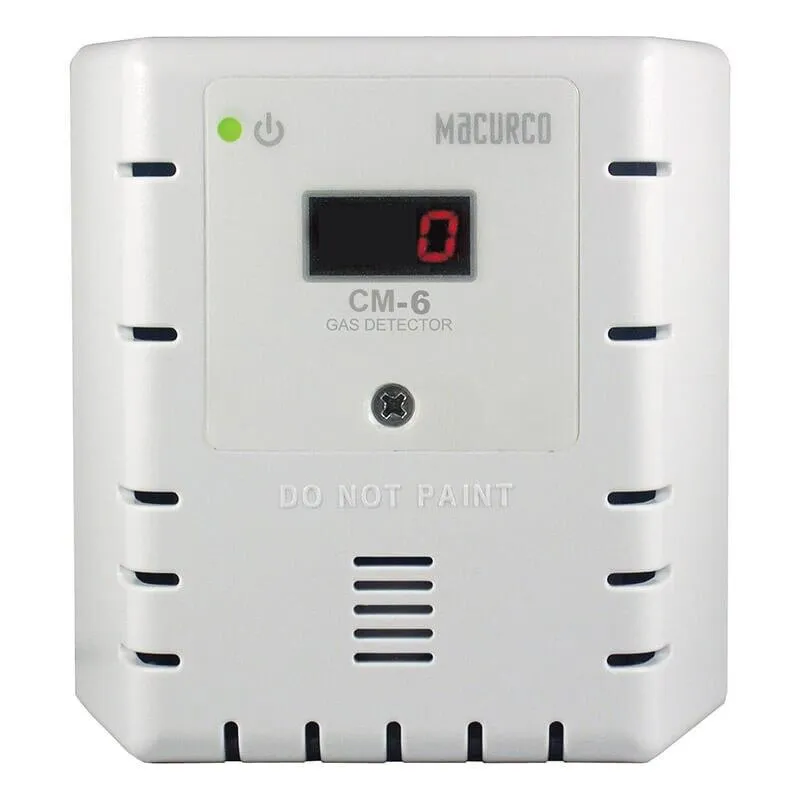

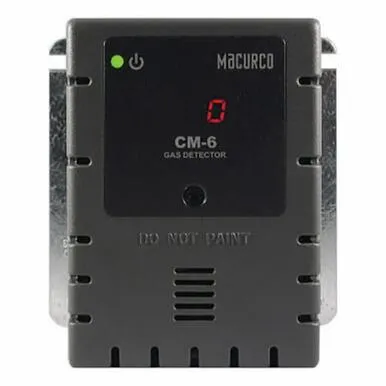

Macurco CO Fixed Gas Detector Controller Transducer provides carbon monoxide detection commercial facilities. The CM-6 Low Voltage and CM-12 Line Voltage monitor can be used as a stand-alone detector and controller and as an analog transducer for use with Macurco control panels and other systems.

Applications: Automobile exhaust, Parking Garages, Forklifts, Loading Docks, Vehicle Repair Facilities, Warehouses, Kitchens, Laundries, Heaters

Key Features:

• Choice of Low Voltage (12-24 VAC or 12-32 VDC input) or Line Voltage (100-240 VAC input)
• 5A SPDT Fan control relay
• 0.5A N.O. or N.C. Alarm Relay
• Selectable Fan and Alarm Relay Actuation Settings
• Digital Display (0-25% v/v O2), Internal Buzzer
• Coverage Area: 900 sq. ft.
• 4-20mA current loop
• Made in the USA

Product Number:
CM-6 WHITE - Low Voltage (12-24 VAC or 12-32 VDC)
CM-12 WHITE - Line Voltage (100-240 VAC)
