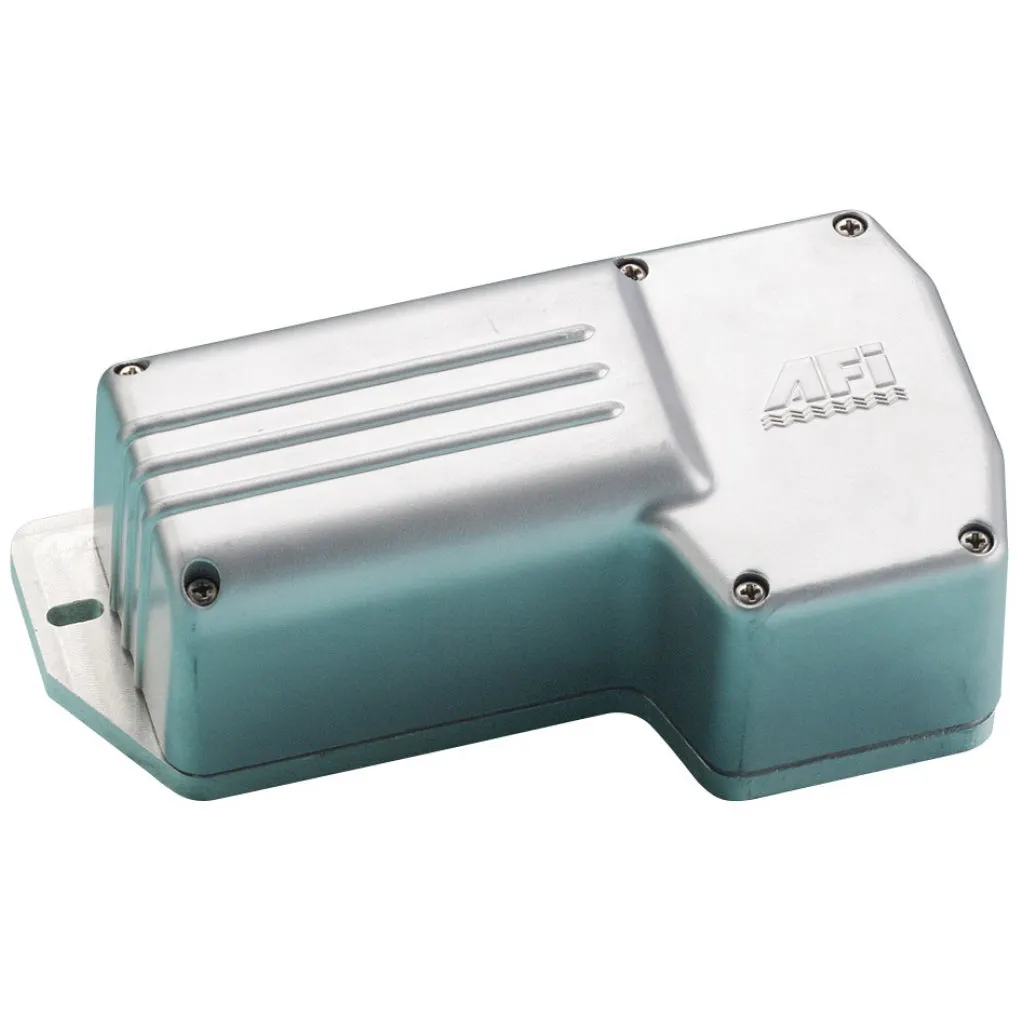

Product Details
＋
2.5" shaft.
It features factory pre-set sweep angles of 80 or 110 degrees, with easy adjustment to 45 or 60 degrees.
Features
- Two speed motor
- Sealed 6" wire leads, 16 AWG
- Adjustable right or left self parking
- 0.625" diameter shaft (16 mm)
- Available in 12V and 24V models
- RF shielded circuitry
Specifications
- Length: 7.75''
- Width: 4''
- Depth: 2.75''
- Stall torque: 109 in-lbs (125 kgf/cm 12.3 Nm)
- Stall current: 11.5-13.0 amps
- No load current: 0.5-1.2 amps
