Product Details
＋

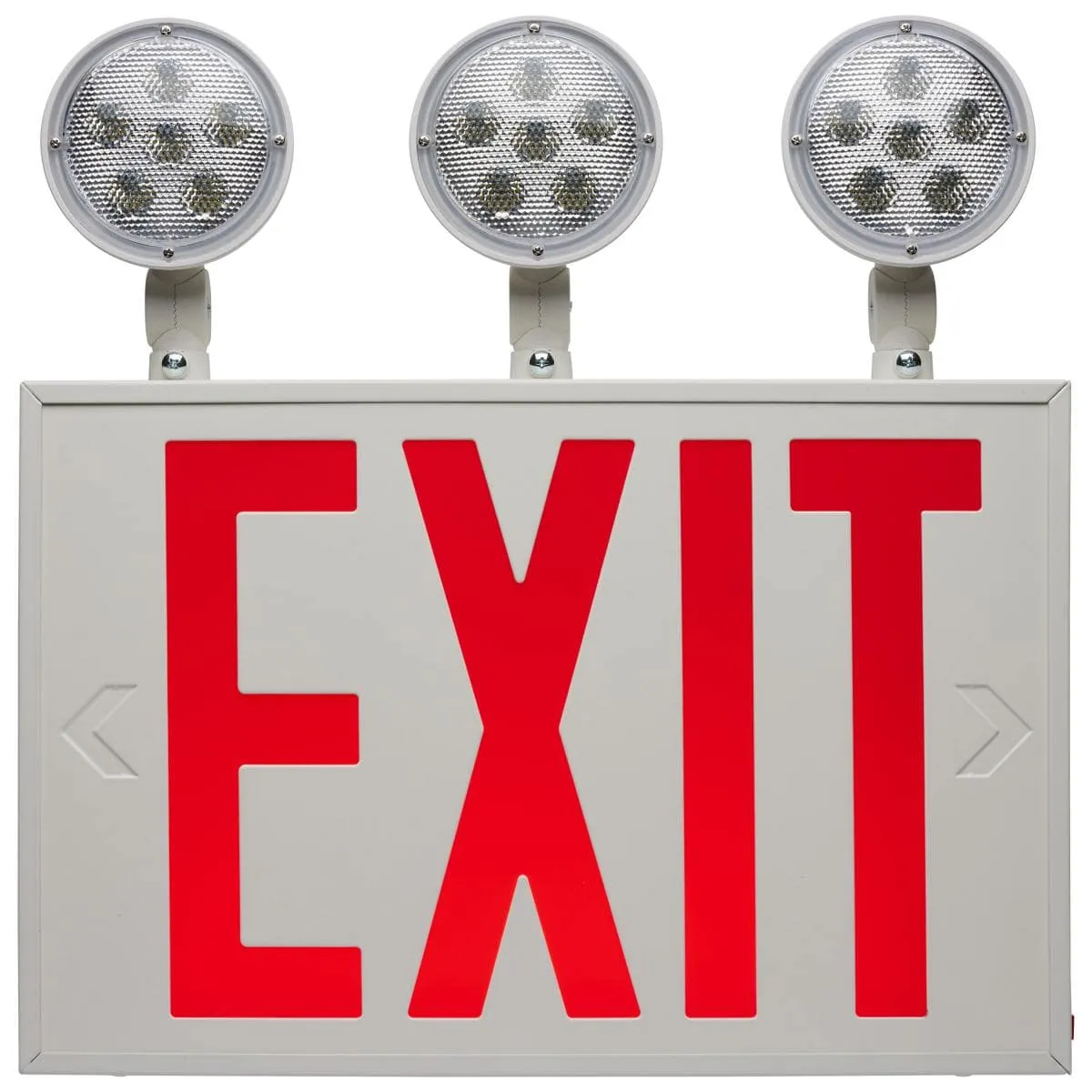

NYC Combination Red Exit Sign/Emergency Light, 90min Ni-Cad backup, 120/277V, Tri Head, Single/Dual Face, Universal Mounting
67-124
EXIT/LIGHT TH - RED - NYC
General
| Status | Active |
| Fixture Type | Exit Sign |
| Finish | White |
| Wattage | 3W |
| Lumen Output | 330L |
| CCT (Kelvin) | 5700K |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 3W |
| Lumen Output | 330L |
| CCT (Kelvin) | 5700K |
| CRI | 70 |
| Voltage | 120V/277V |
| Operating Temperature | 10C ( 50F) to 40C ( 104F) |
| Dimmable | Non-Dimmable |
| Weight (lb.) | 6.61 |
| Material | Steel |
Dimensions
| Height (in.) | 14.88 |
| Width (in.) | 14.56 |
| Length (in.) | 2.31 |
Compliance
| Safety Listing | ULus - Certified |
| Location Rating | Damp |
| Energy Star | No |
| CA T20 / T24 Rationale | T20 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | No |
Additional Information
| Additional Information | Input Wattage: 3.0W; Output Wattage: 1.6W; Energy Used in Maintenance Mode: 3.0W |
| Specification Note | 20-gauge Steel, 3.6V AA800mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 8 in.; Letter Stroke: 1 in.; Path of Egress: 6 Ft. |
| Includes | Mounting hardware and accessories |
| Warranty |
Packaging
| Each UPC | 045923675782 |
| Each Quantity | 1 |
| Each Length (in.) | 15.79 |
| Each Width (in.) | 15.16 |
| Each Height (in.) | 2.76 |
| Each Weight (lb.) | 7.14 |
