Product Details
＋

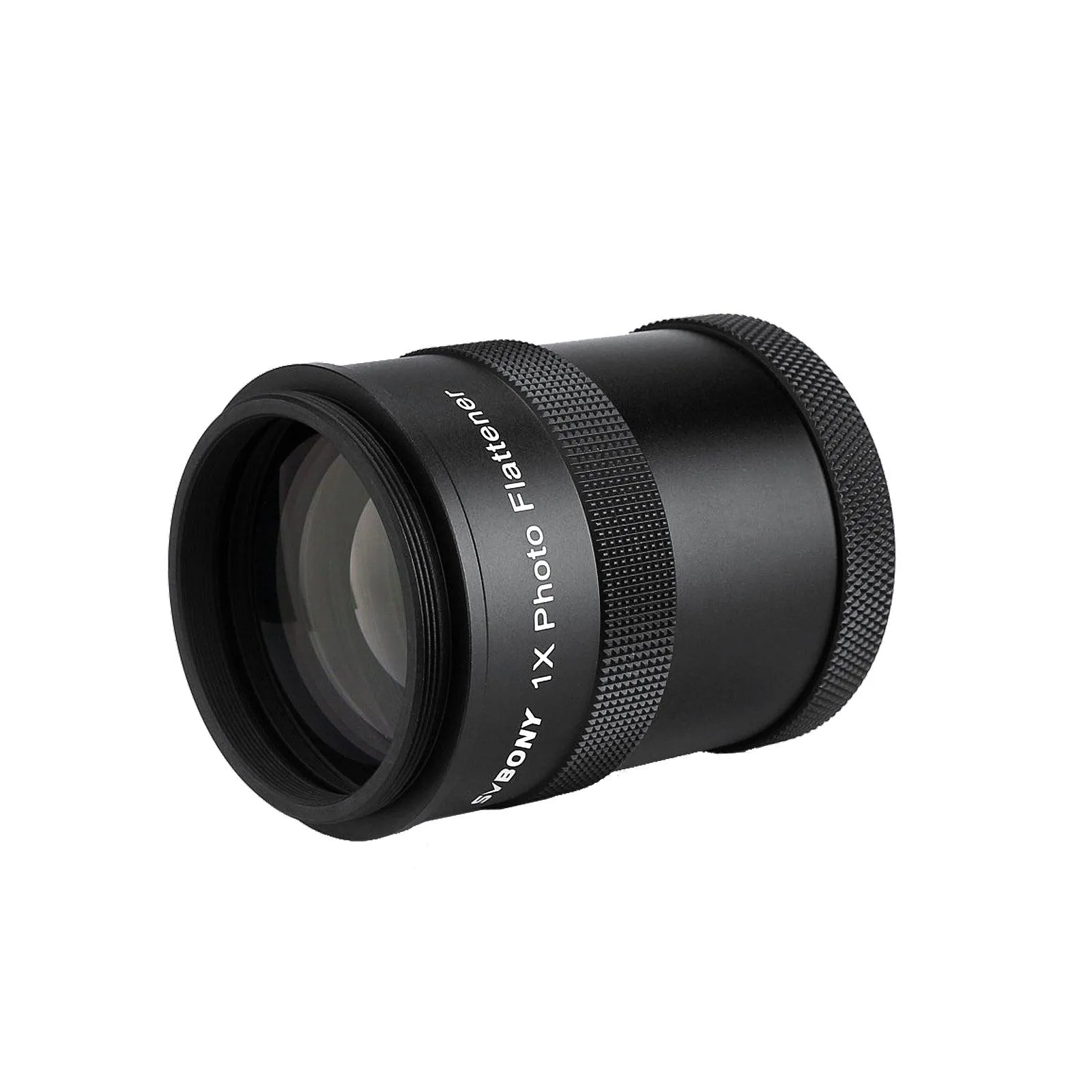

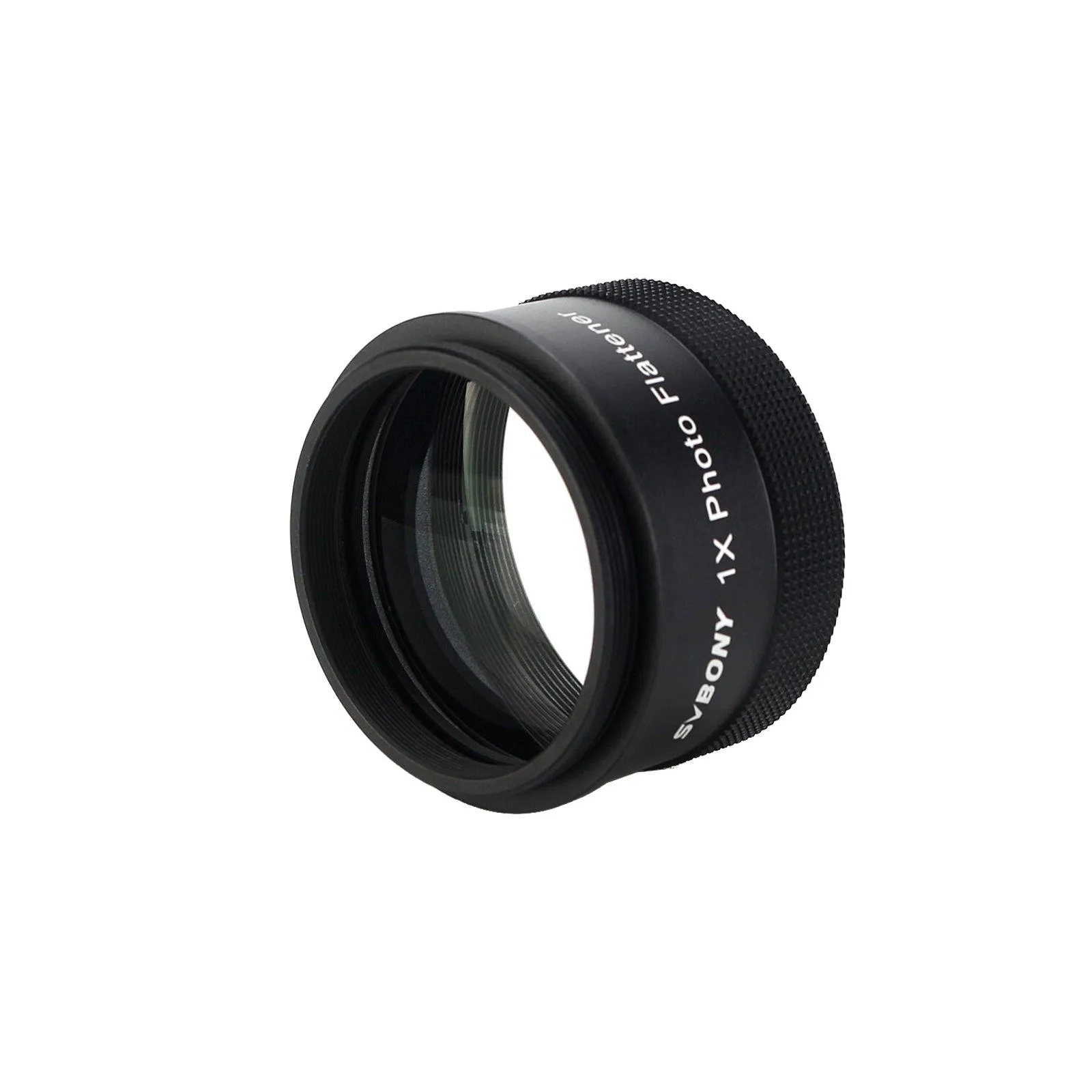

SVBONY SV209 1.0x Flattener for SV550 80F6 M63x1
75 filter thread for the use of 2" filters in the camera adapter
Maximum working distance from the M63x1 internal thread: 103 mm - space enough for almost all adaptations
Connection at telescope side: M63x1Male thread
Connection at camera side: M48x0.75 male thread and M63x1 female thread
Working distances: 55 mm from the M48x0.75 external thread and 91.5mm (if you leave out the M63 extension)
The corrector does not change the focal length - factor 1.0
The position of the refractor´s focal plane is not changed
The corrector is suitable for SV550 80F6
Technical Specifications
| Brand: | SVBONY |
| Model: | SV209 |
| Connection at telescope side: | M63x1 male thread |
| Connection 1 at camera side: | M63x1 thread female - working distance 103 mm |
| Connection 2 at camera side: | M48x0.75 male thread - working distance 55 mm or 91.5 mm |
| Fully illuminated field: | 45 mm (SupportFull Frame Sensors） |
| Number of elements: | 2 lenses |
| Factor: | 0 - no change of focal length to the focal plane |
| Coating: | FMC |
| Diameter of the housing: | 67mm |
|
Length:
|
87.5 mm without the male thread
|

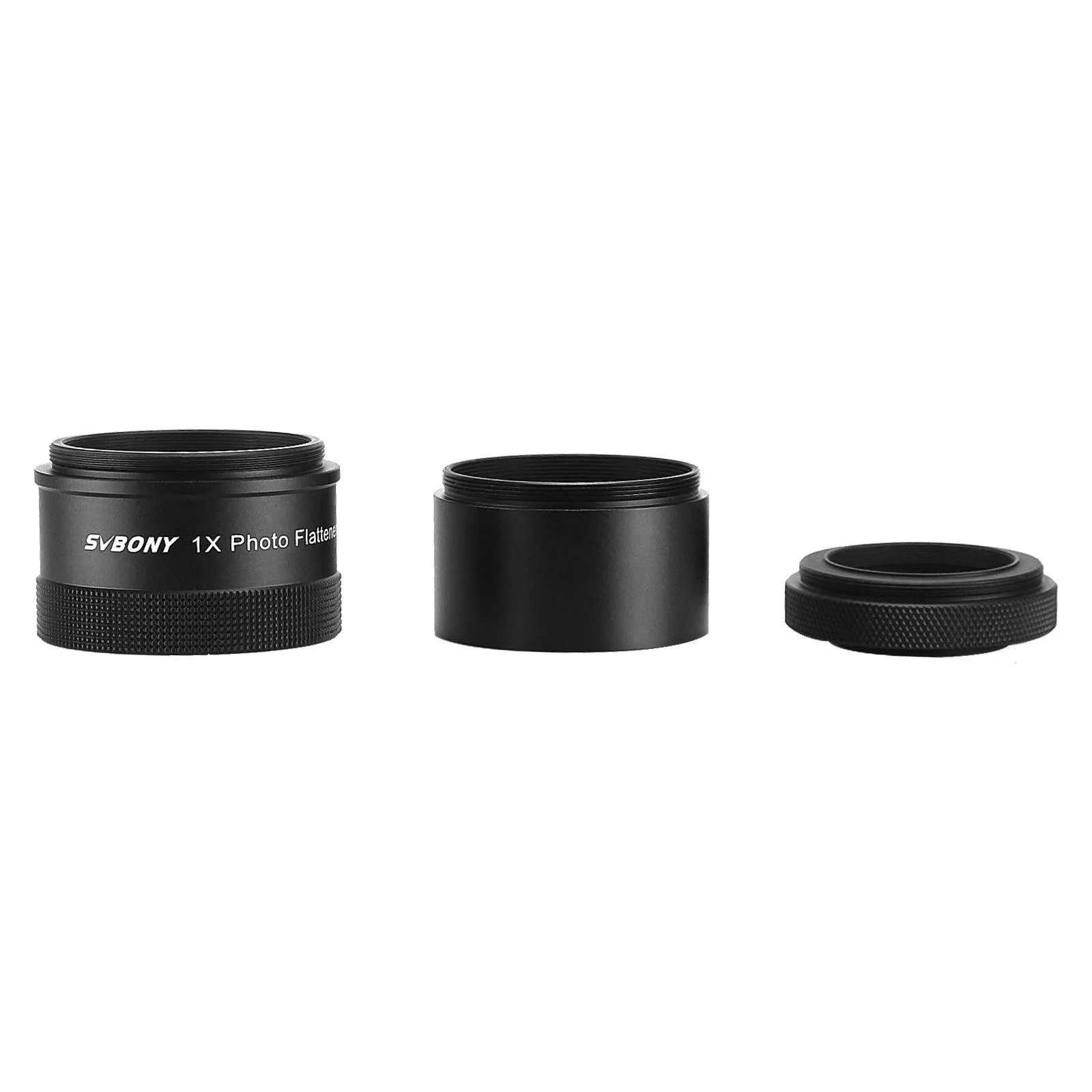

In the Box
1 SV209 Flattener
1 M63 Extension Tube
1 M48 Adapter
2 Dust Cover
