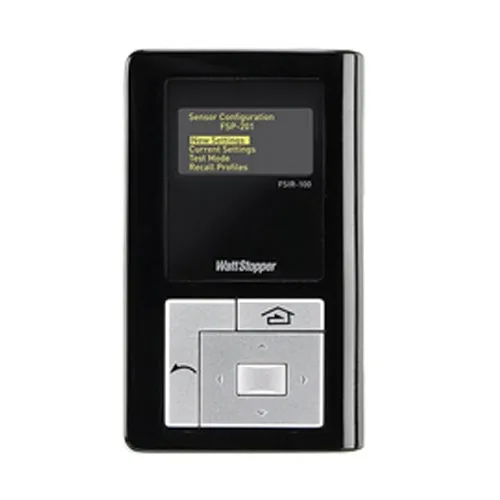

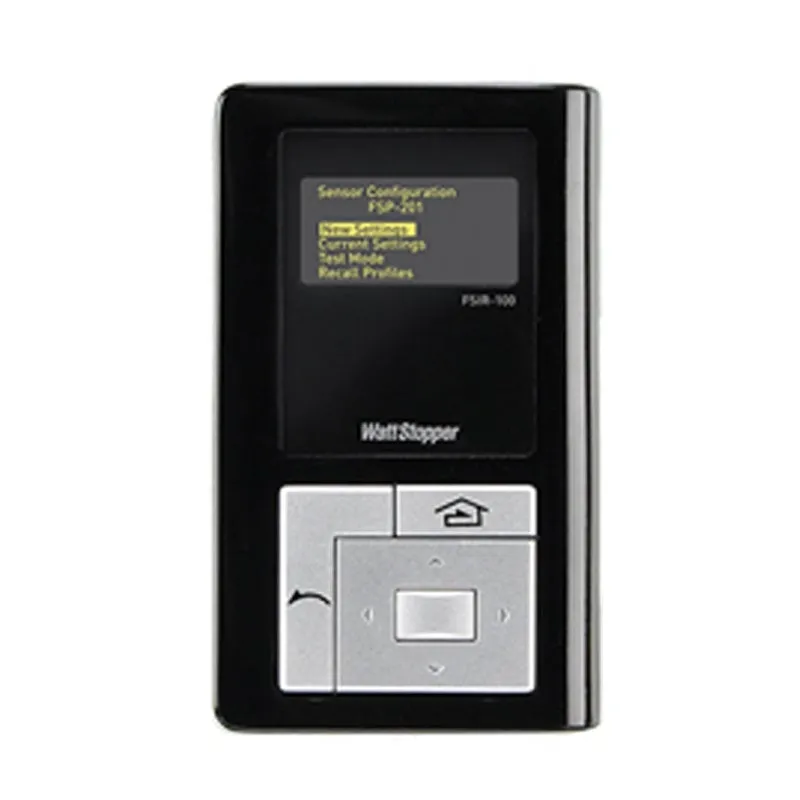

The FSIR-100 Wireless IR Configuration Tool is a handheld tool for remote configuration of IR-enabled fixture integrated sensors. The tool enables device modifications via push button, without ladders or tools, and stores up to six sensor parameter profiles to speed configuration of multiple sensors.

Features:

• Finish: Black
• Type: Remote
• Typical Applications: Parking Facilities, Gas Stations, Pedestrian Pathways, Warehouses
• Enables fast ladder-free setup and maintenance
• Easy-to-read OLED screen
• Allows precise configuration with greater granularity than dip switches or trimpots
• 2-way IR communication for data upload, download, confirmation and storage
• Easy-to-use navigation pad
• Configures IR-enabled fixture sensors including selected HBP and FSP models
• Three AAA 1.5 volt batteries (included)
• OLED display 1.4?�W x .75?�H (36mm x 19mm)
• Infrared (IR) transceiver (36kHz frequency)
• IR range: up to 32 (10m)
• Includes carrying case with belt clip
• Operating temperature: 0-104°F (0-40°C)

Model:

FSIR-100
