Product Details

Harness the power of the xTool D1 Pro, the most powerful DIY laser engraver under $2,000.

The xTool D1 Pro 20W is a cutting-edge diode laser machine, designed for both hobbyists and small to medium-sized businesses looking to elevate their engraving and cutting capabilities.

Compatible Materials:

Wood

MDF / Plywood

Leather

Dark Plastics

Fabric

Stone

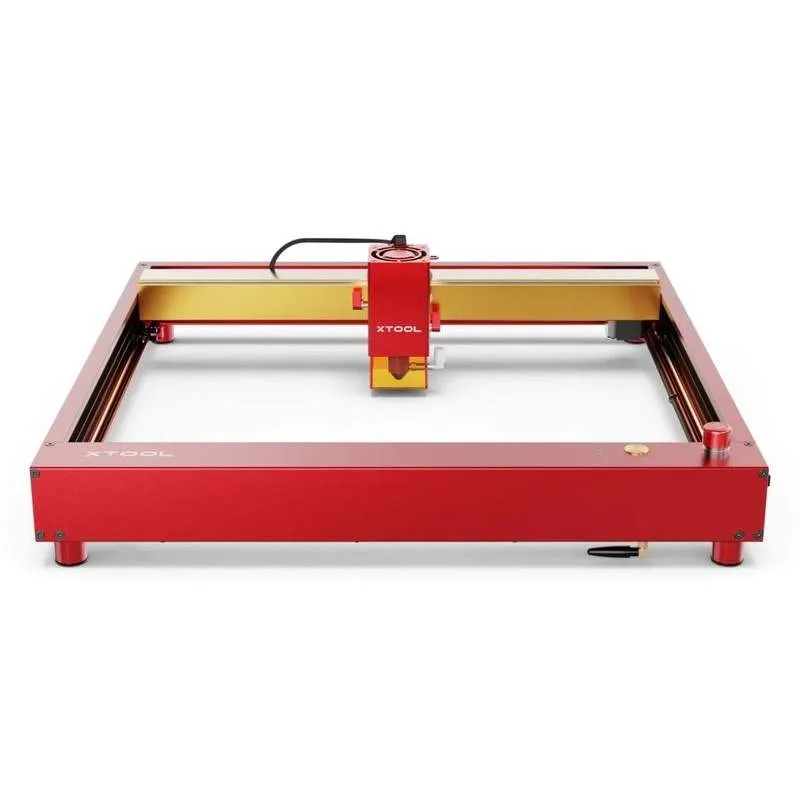

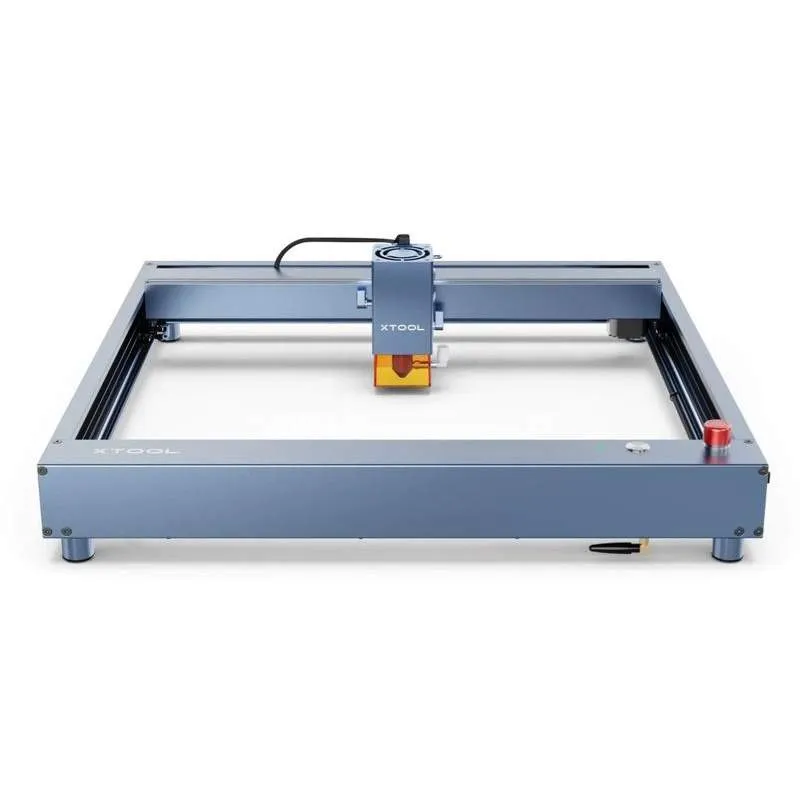

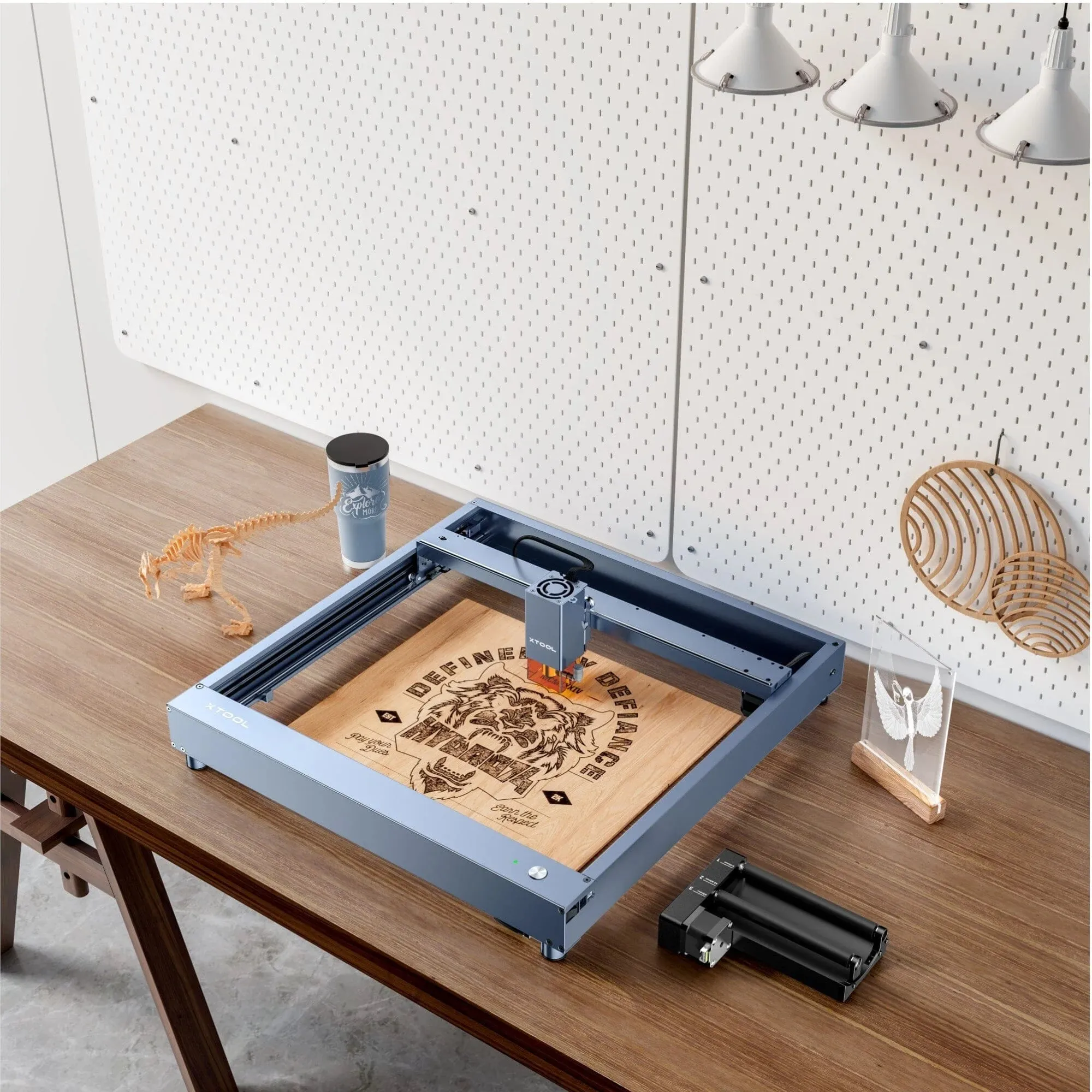

Introducing the xTool D1 Pro 20W, the ultimate diode laser machine designed for both hobbyists and small to medium-sized businesses. This powerful and versatile tool features a robust aluminum open-frame construction, cutting-edge 20W laser output, and user-friendly assembly, making it perfect for a wide range of creative projects. With its ability to cut and engrave various materials with precision, enhanced safety features, and optional accessories for expanded functionality, the xTool D1 Pro 2.0 delivers unmatched performance and reliability for all your engraving and cutting needs.







xTool D1's Exceptional Laser Power and Precision

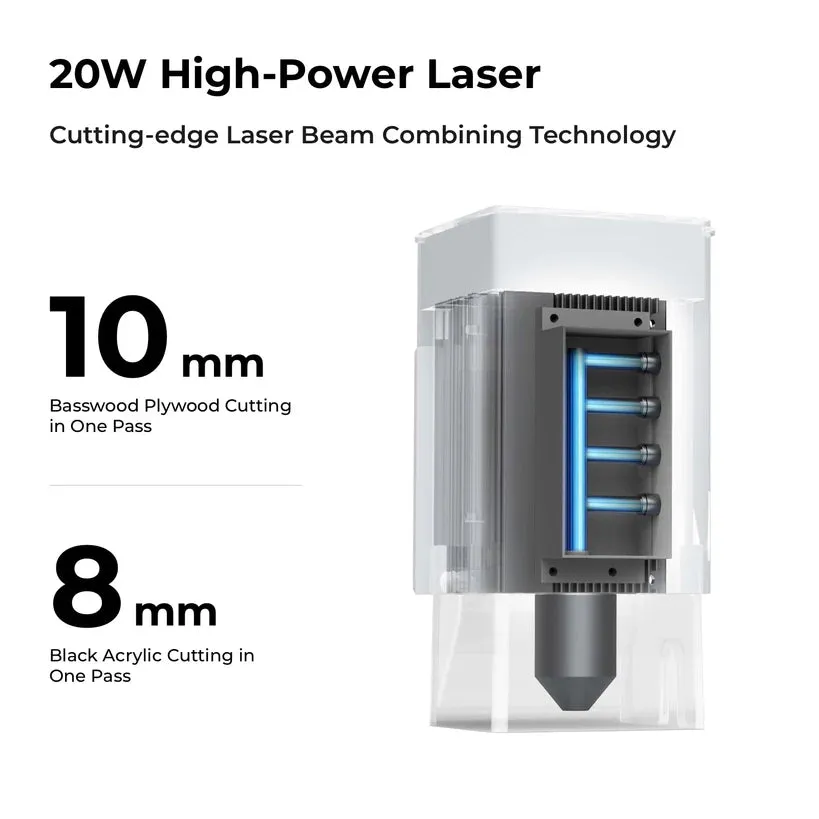

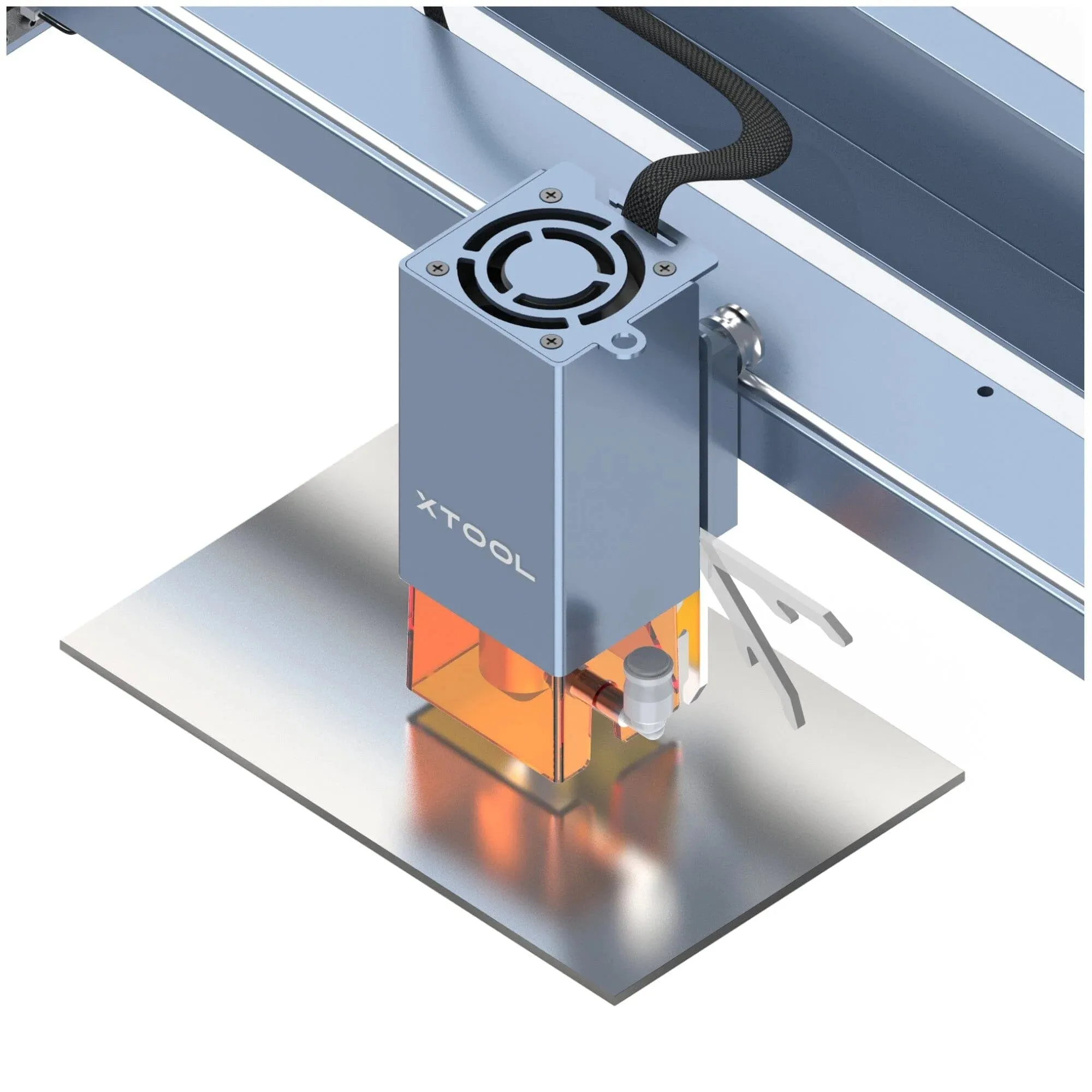

The xTool D1 Pro 20W 2.0 stands out with its incredible laser power. Equipped with four 5W diode lasers focused on a single spot, it delivers an impressive 20W output. This powerful configuration allows the D1 Pro to cut through a 10-mm basswood or an 8-mm acrylic plate in a single pass. With a maximum speed of 400 mm/s and accuracy up to 0.004 inches, this machine ensures your projects are completed quickly and precisely.

xTool D1 Pro 20W Is Expandable and Customizable

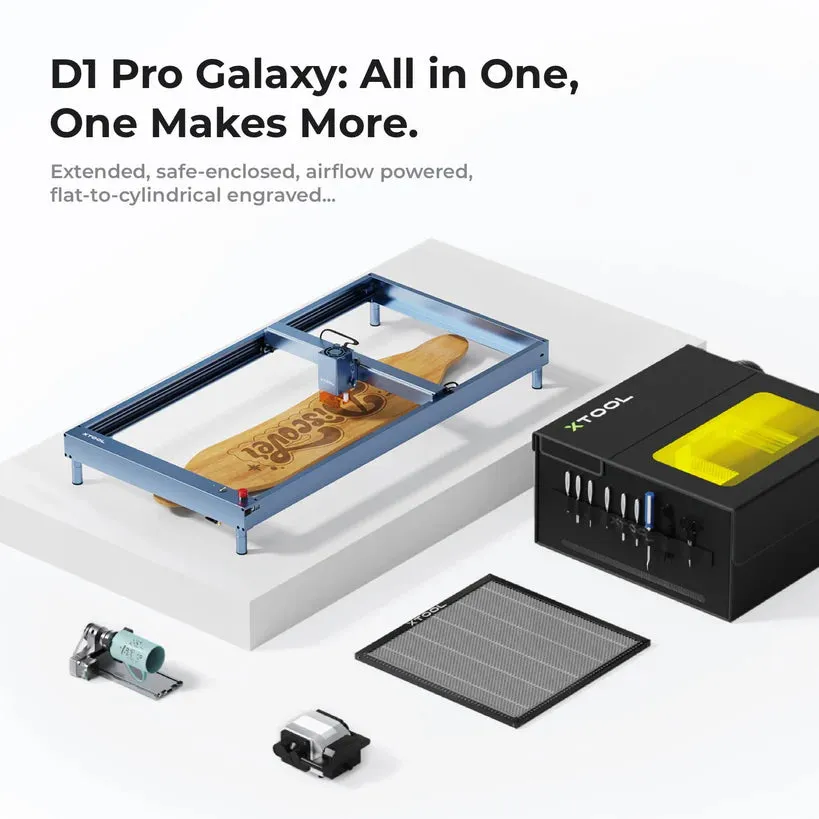

The xTool D1 Pro 2.0 offers numerous optional accessories to enhance its functionality. You can increase the maximum workpiece height with riser sets, each adding 45 mm. The machine's compatibility with third-party software like LightBurn, which supports various file formats, further expands its capabilities. Whether you're producing personalized gifts, home decorations, or batch products for a craft business, the D1 Pro 2.0 adapts to your needs, providing endless creative possibilities.

Upgradable options include:

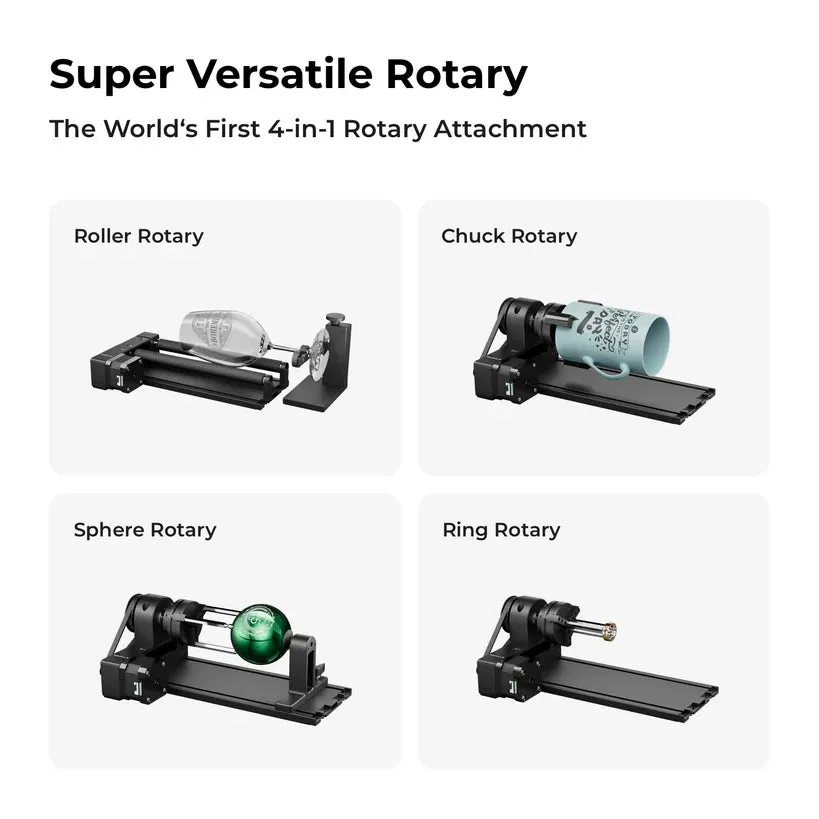

  • Rotary Attachment 2 Pro: 4-in-1 rotary helps to process different objects.
  • Automatic Conveyor Feeder (39"): Engrave anything up to 3m long in size,and no interruptions in your design.
  • Riser Base: Significant Upgrade on Engraving Thickness. (Up to 8.4")
  • Smoke Purifier: Create a silent and safe working area with 99.97% purification rate.

Robust and Safe Design Standard With xTool D1

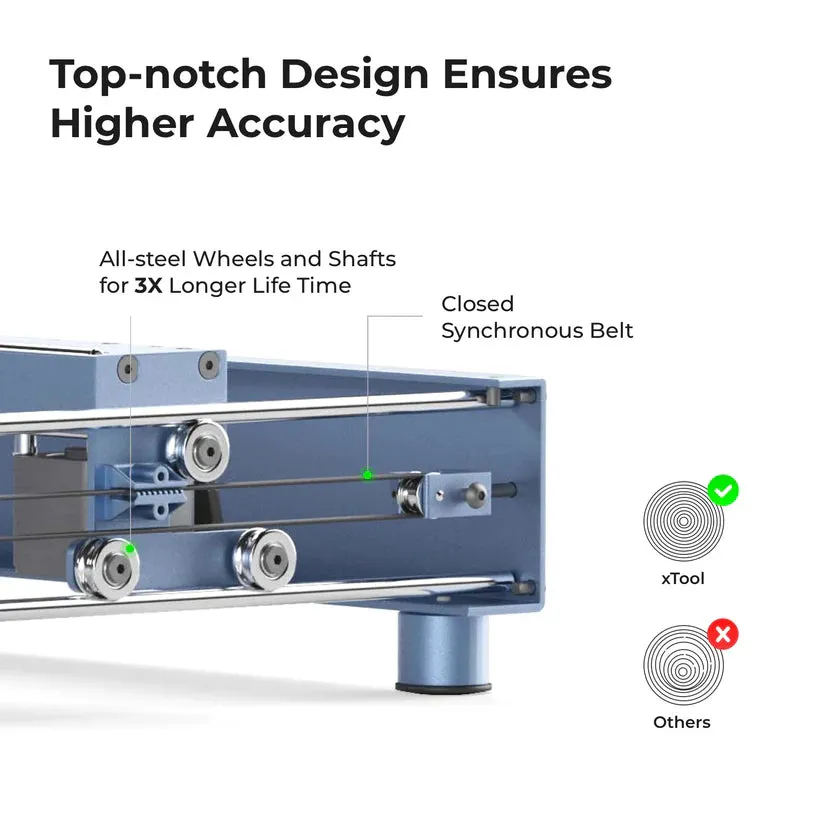

Built for durability, the xTool D1 Pro 2.0 features an aluminum open-frame construction with stainless steel rollers and linear rails, ensuring smooth and reliable operation. Safety is a priority with this model, which includes an emergency stop switch, flame detector, and shake sensor. Optional add-ons like an enclosure, smoke purifier, and fire safety set provide additional layers of protection, making the D1 Pro 2.0 a safe choice for any workspace.


Key Features of the xTool D1 include:

  • 20W high-power laser for cutting through thick materials with ease
  • Precise focus adjustment and lightning-fast 400mm/s speed
  • Large 430 x 390mm working area for oversized projects
  • Versatile enough to engrave a wide range of materials, from wood to metal



      xTool D1 Pro Features Easy Assembly and User-Friendly Operation

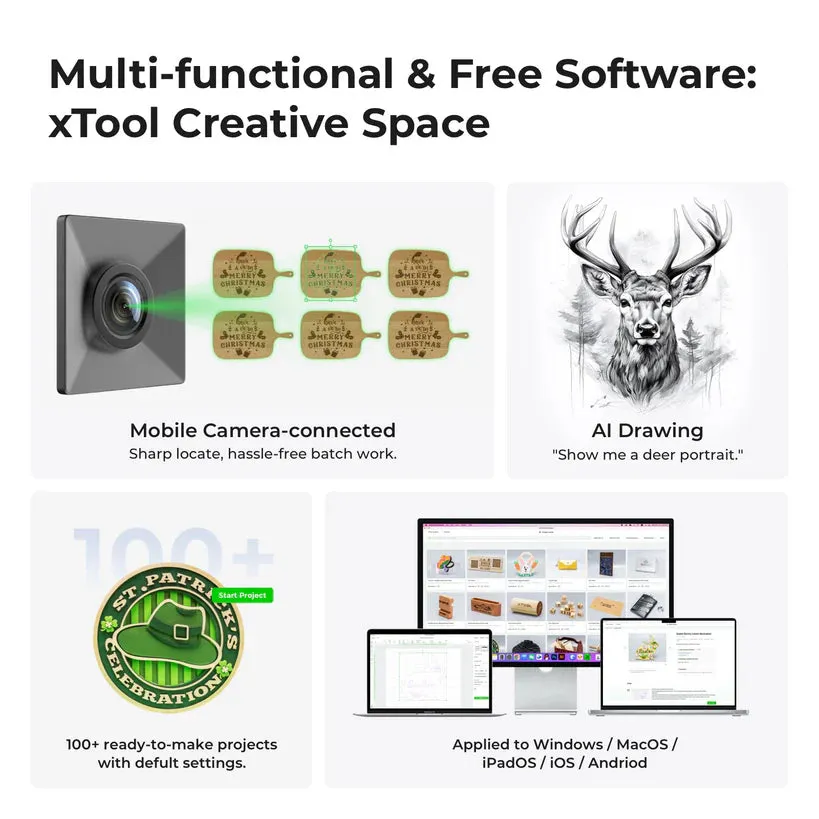

      Setting up the xTool D1 Pro 2.0 is straightforward, thanks to detailed instructions that guide you through the DIY assembly process. The machine includes four limit switches to prevent the laser head from hitting the frame and to help set the home position accurately. A convenient focus adjustment mechanism ensures optimal focal length for various materials, and the machine can be easily connected to a PC via Wi-Fi, USB, or TF card. The included xTool Creative Space software is user-friendly and supports firmware updates, making operation smooth and hassle-free.

      xTool D1's Versatile Material Compatibility

      The xTool D1 Pro 2.0 excels in versatility, capable of cutting and engraving a wide variety of materials. From wood, paper, and leather to coated metals, stainless steel, and acrylic, this machine handles it all. It even offers color engraving on metals like stainless steel by oxidizing the metal surface, allowing for unique and intricate designs. With a working area of 430 x 390 mm, the D1 Pro 2.0 can tackle large-scale projects or multiple smaller patterns simultaneously, enhancing productivity and creativity.

      Some of the materials xTool D1 Pro can cut include:

      • Wood: pine, oak, maple, birch, walnut, cherry, plywood and basswood.
      • Acrylic: all colors and all types, including translucent, mirrored, opaque and clear acrylic.
      • Fabric: cotton, polyester, nylon, silk, linen, polyester and polyamide fabric.
      • Leather: genuine, synthetic, faux leather.
      • Others: EVA foam, felt pad, plastic, rubber, paper, cork and cardboard.

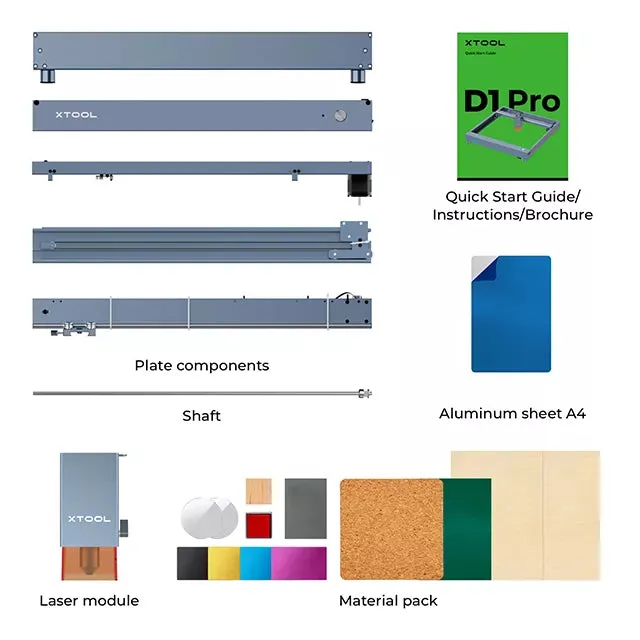

      What's Included With The xTool D1 Pro?

      • xTool D1 Pro 20W 2.0 assembly parts
      • Material pack
      • Aluminum protective sheet
      • Parts storage box
      • Tools and screws
      • TF card
      • All necessary cables
      • Safety goggles
      • User manual



      Specifications

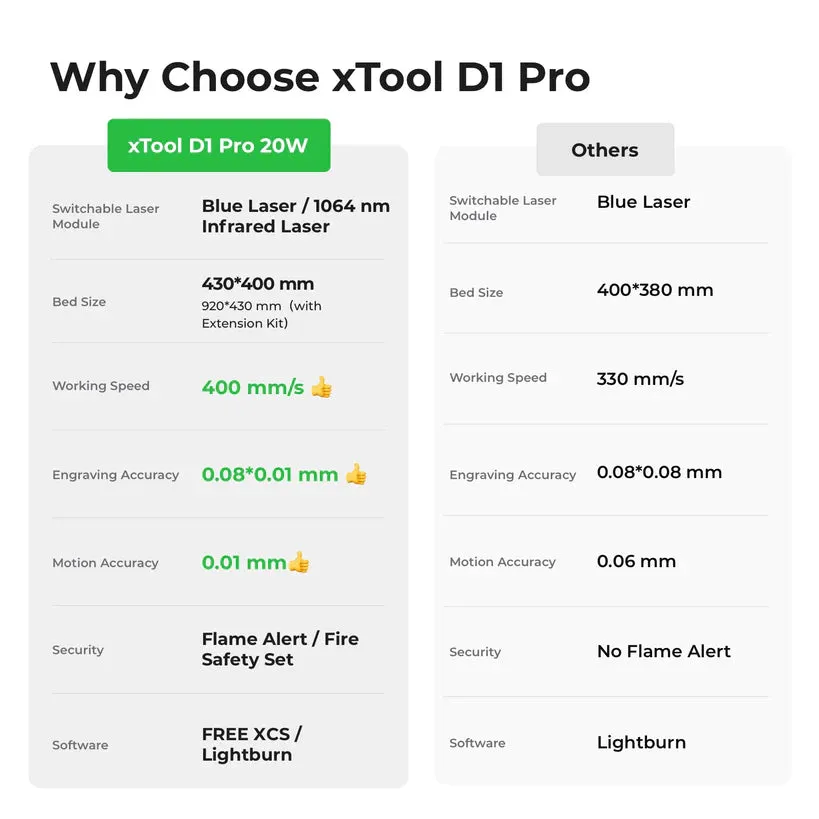

      xTool D1 Pro Specifications:

      xTool D1 Pro xTool D1 Pro Product Specifications
      Product Information Machine Power: 120W
      Laser Electric Power: 84W
      Laser Module Output Power: 20W
      Laser Spot: 0.08*0.10mm
      Routing Speed: 400 mm/s
      Max. Workpiece Height: 50 mm (2 inches)
      Max. Workpiece Height with X Risers: 50 mm X*45 mm (each set riser height column)
      Work Area

      430*390 mm (16.93*15.35 inches)

      Expandable to 920*430mm (36.22*16.93 inches) with xTool Extension Kit

      Software and Connection Operating Systems: Windows / macOS / iPadOS

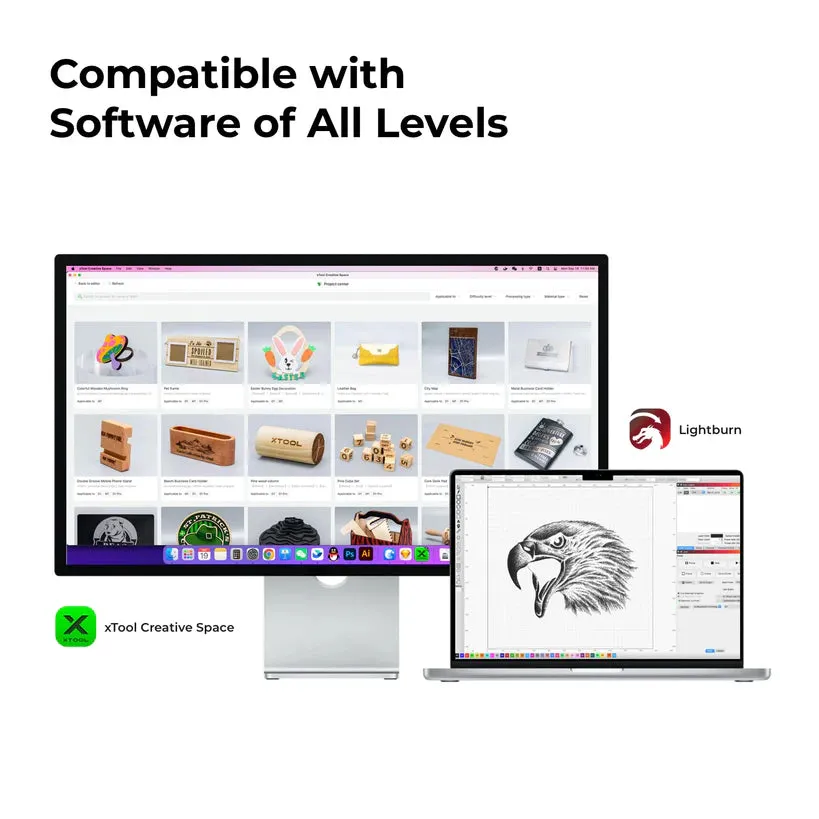

      Control Software: xTool Creative Space / LightBurn
      Supported File Type: SVG, DXF, JPG, JPEG, PNG,
      BMP Connection / Transmission: Wi-Fi, USB, Ethernet
      Certification: FCC / FDA / CE




      Warranty & Manuals

      xTool D1 Pro Warranty Details:

      • xTool D1 Pro comes with a 1-year warranty on the laser engraving machine (excluding consumables / shipping)
      • 100% money back guarantee (minus shipping and handling costs) if you return your unit in like-new condition within 30 days of the ship date.
      • Dedicated, local US-based support for quick answers to questions

      xTool D1 Pro Product Manuals:

      Click the links below to download product manuals for the xTool D1 Pro.

      xTool D1 Pro Product Manual Downloads:

      xTool D1 Pro Product Manual Download xTool D1 Pro Quick Start Guide Download
